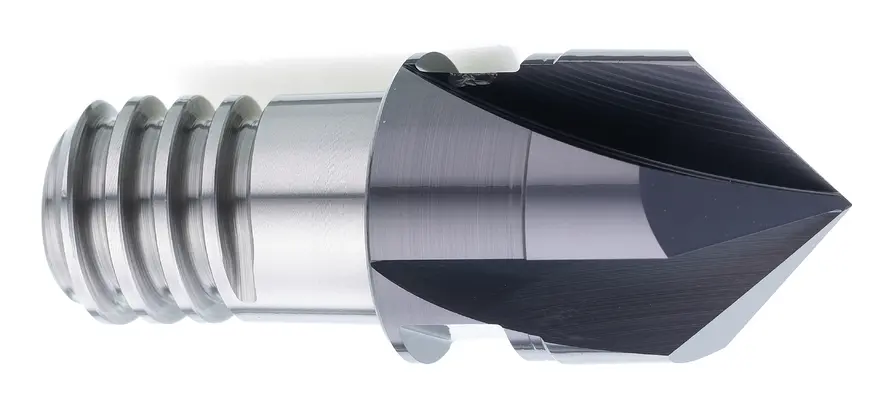

IMP..-E109FX Interchangeable End Mills For Chamfering 60°/90°/120°

METRIC ASIA
  • End Mills for Chamfering - 4 Flutes
  • Suitable for drilling, tappering, countersinking, NC Spot drilling and frame milling.
  • UMG carbide
  • 塗層種類2
  • 螺旋角 1-1
  • 1-3
  • 未命名
  • Nr5
Inquiry Download
PREV NEXT

Steel < 52HRC

P H M K N S

Work Material

P H K N S
GR1 GR2 GR3 GR4 GR5 GR9 GR10 GR11 GR15 GR17
Carbon Steel <24HRC Low-alloyed Steel <30HRC Hi-alloyed Steel 30~38HRC Hardened Steel 38~48HRC Hardened Steel Cast Iron Aluminium Copper Titanium High Temp Alloys

Product Specification

Product Filter
Dc
Lc
L1
z
Code No. Dc Lc L1 D1 z
0-0.03 mm mm mm
IMP10-E109FX100008A060 10 8.6 16 9.7 4
IMP12-E109FX120010A060 12 10.3 19 11.7 4
IMP16-E109FX160013A060 16 13.8 24 15.5 4
IMP20-E109FX200017A060 20 17.3 30 19.5 4
IMP25-E109FX250021A060 25 21.6 37.5 24.5 4
IMP10-E109FX100005A090 10 5 9.7 9.7 4
IMP12-E109FX120006A090 12 6 11.7 11.7 4
IMP16-E109FX160008A090 16 8 15.5 15.5 4
IMP20-E109FX200010A090 20 10 19.5 19.5 4
IMP25-E109FX250012A090 25 12.5 37.5 37.5 4
IMP10-E109FX100002A120 10 2.8 16 9.7 4
IMP12-E109FX120003A120 12 3.4 19 11.7 4
IMP16-E109FX160004A120 16 4.6 24 15.5 4
IMP20-E109FX200005A120 20 5.7 30 19.5 4
IMP25-E109FX250007A120 25 7.2 37.5 24.5 4
