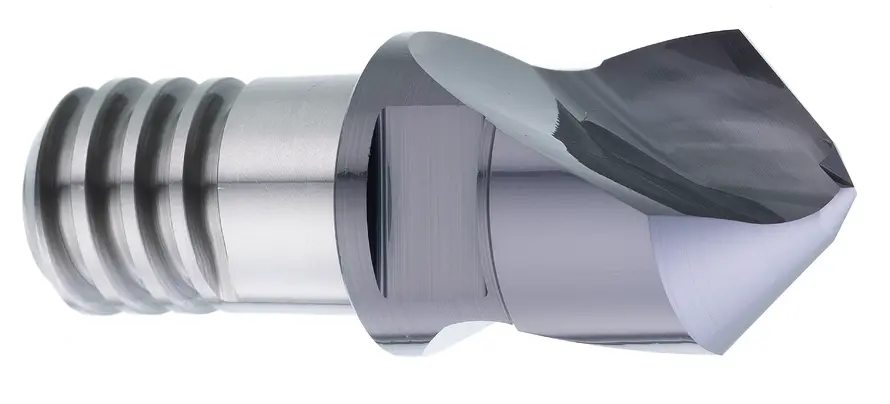

IMP..-D922FX Interchangeable NC Spot Drills
METRIC
ASIA
- D922X NC Spot Drills 90°
- Design with double drill tip angle to enhance the
- strength of drill tip.
- Apply with AlTiN coating to increase wear
- resistance and improved tool life.
- Application for spot drilling in different steels.
Steel < 48HRC
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| P | H | M | K | N | S | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| GR1 | GR2 | GR3 | GR4 | GR5 | GR8 | GR9 | GR11 | GR15 | GR16 | GR17 |
| Carbon Steel | <24HRC Low-alloyed Steel | <30HRC Hi-alloyed Steel | 30~38HRC Hardened Steel | 38~48HRC Hardened Steel | Stainless Steel | Cast Iron | Copper | Titanium | Nickel | High Temp Alloys |
Product Specification
| Code No. | Dc | Lc | L1 | D1 | z |
|---|---|---|---|---|---|
| 0-0.03 | mm | mm | mm | ||
| IMP10-D922FX100010A090 | 10 | 10 | 16 | 9.7 | 2 |
| IMP12-D922FX120012A090 | 12 | 12 | 19 | 11.7 | 2 |
| IMP16-D922FX160016A090 | 16 | 16 | 24 | 15.5 | 2 |
| IMP20-D922FX200020A090 | 20 | 20 | 30 | 19.5 | 2 |
| IMP25-D922FX250025A090 | 25 | 25 | 37.5 | 24.5 | 2 |
