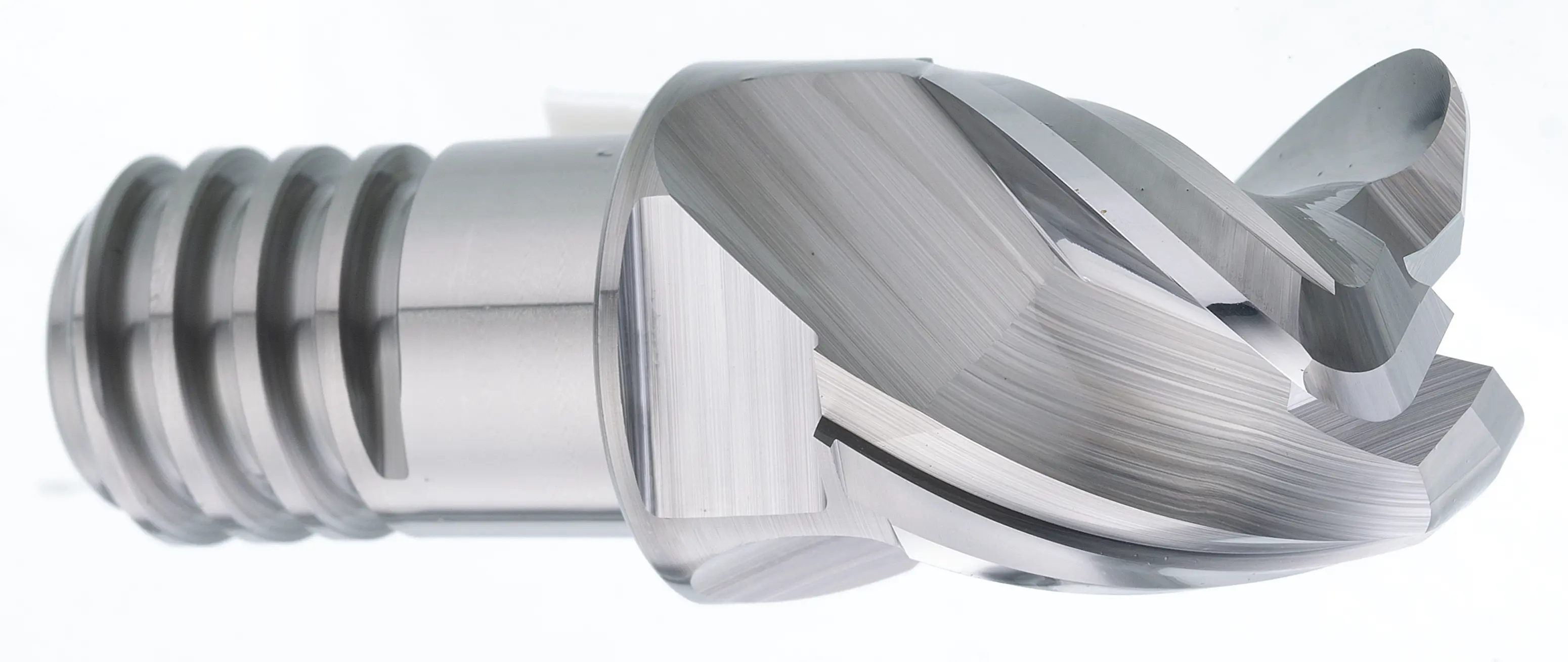

IMP..-E145 Interchangeable End Mills For Aluminium With Corner Radius
METRIC
ASIA
- End Mills with Corner Radius for Aluminium- 3 Flutes.
- Design with sharp cutting edge, high removal cutting geometry
- , and fine grinding smooth surface to prevent sticking problem.
- Higher finishing of cutting edge to have better surface roughness after processing.
- With corner Radius to enhance tool life.
- Application for roughing and finishing in various Aluminium.
Aluminium
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| N | ||
|---|---|---|
| GR10 | GR11 | GR14 |
| Aluminium | Copper | Graphite |
Product Specification
| Code No. | Dc | R | Lc | L1 | D1 | z |
|---|---|---|---|---|---|---|
| 0-0.03 | ±0.01 | mm | mm | mm | ||
| IMP10-E145100015R10 | 10 | 1 | 15 | 21 | 9.7 | 3 |
| IMP10-E145100015R20 | 10 | 2 | 15 | 21 | 9.7 | 3 |
| IMP12-E145120018R10 | 12 | 1 | 18 | 25 | 11.7 | 3 |
| IMP12-E145120018R20 | 12 | 2 | 18 | 25 | 11.7 | 3 |
| IMP12-E145120018R20 | 12 | 3 | 18 | 25 | 11.7 | 3 |
| IMP16-E145160024R10 | 16 | 1 | 24 | 32 | 15.5 | 3 |
| IMP16-E145160024R20 | 16 | 2 | 24 | 32 | 15.5 | 3 |
| IMP16-E145160024R30 | 16 | 3 | 24 | 32 | 15.5 | 3 |
| IMP16-E145160024R40 | 16 | 4 | 24 | 32 | 15.5 | 3 |
| IMP20-E145200030R10 | 20 | 1 | 30 | 40 | 19.5 | 3 |
| IMP20-E145200030R20 | 20 | 2 | 30 | 40 | 19.5 | 3 |
| IMP20-E145200030R30 | 20 | 3 | 30 | 40 | 19.5 | 3 |
| IMP20-E145200030R40 | 20 | 4 | 30 | 40 | 19.5 | 3 |
| IMP25-E145250037R10 | 25 | 1 | 37.5 | 50 | 24.5 | 3 |
| IMP25-E145250037R20 | 25 | 2 | 37.5 | 50 | 24.5 | 3 |
| IMP25-E145250037R50 | 25 | 5 | 37.5 | 50 | 24.5 | 3 |
