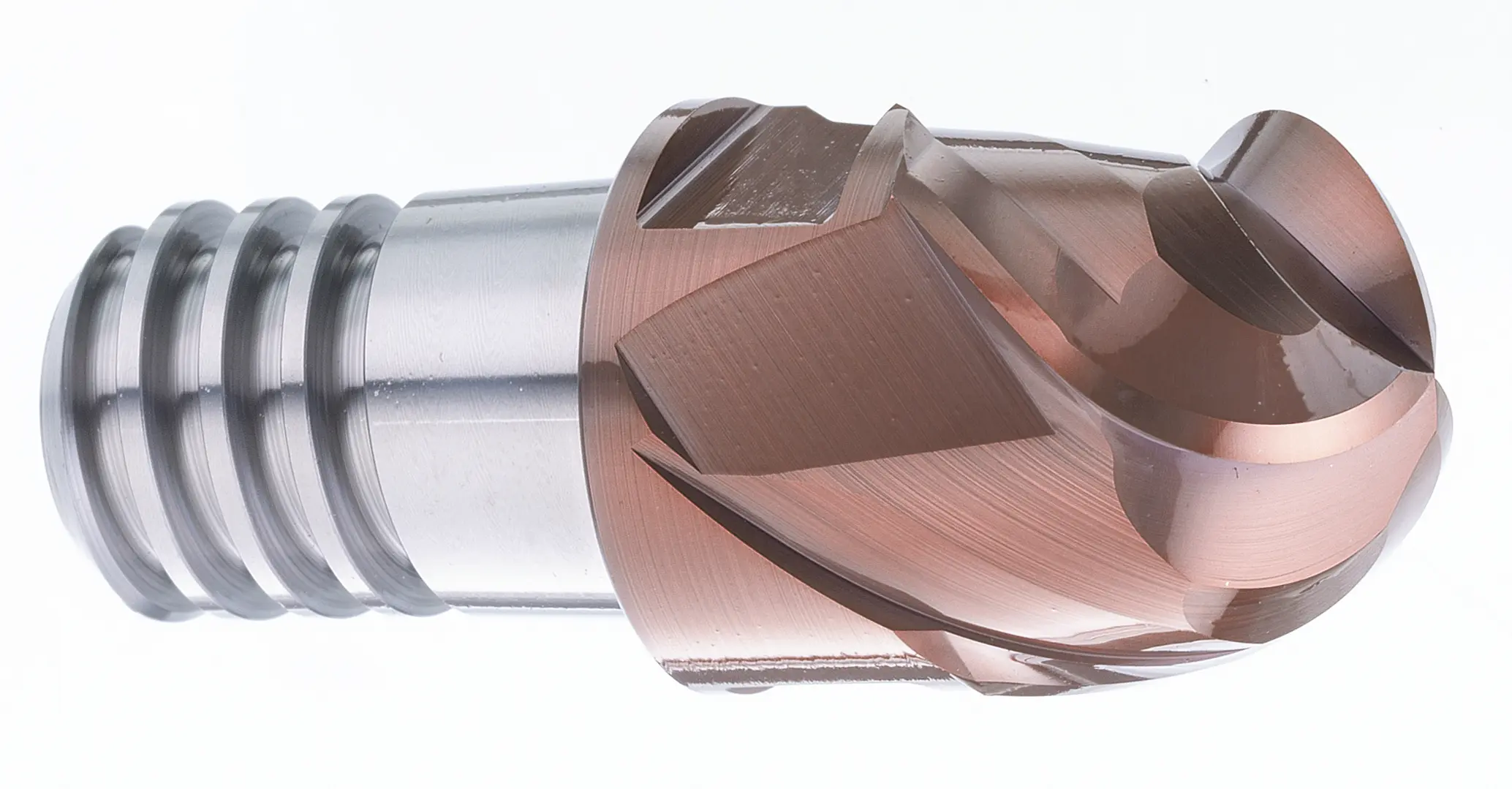

E143 (EMH) Interchangeable Aluminium End Mill Shanks
METRIC
ASIA
- Double-contact surface (taper and face)
- Solid carbide cutter head and body shank
- High accuracy, rigidity and efficiency in cutting
- High economy value with various interchangeable cutter heads
- Trapezoidal-designed thread reduces thread chipping
- Runout within 5μm Interchangeable
Aluminium
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| N |
|---|
| GR10 |
| Aluminium |
Product Specification
| Code No. | L | d | D1 | L1xD1 |
|---|---|---|---|---|
| mm | h6 | mm | mm | |
| EMH10U1007015 | 70 | 10 | 2.0 | 15x9.7 |
| EMH10U1009030 | 90 | 10 | 2.0 | 30x9.7 |
| EMH10S1011000 | 110 | 10 | 2.0 | |
| EMH12U1208018 | 80 | 12 | 2.5 | 18x11.7 |
| EMH12U1210036 | 100 | 12 | 2.5 | 36x11.7 |
| EMH12S1212000 | 120 | 12 | 2.5 | |
| EMH16U1609024 | 90 | 16 | 3.5 | 24x15.5 |
| EMH16U1612048 | 120 | 16 | 3.5 | 48x15.5 |
| EMH16S1615000 | 150 | 16 | 3.5 | |
| EMH20U2010030 | 100 | 20 | 5.0 | 30x19.5 |
| EMH20U2013060 | 130 | 20 | 5.0 | 60x19.5 |
| EMH20S2018000 | 180 | 20 | 5.0 | |
| EMH25U2511038 | 110 | 25 | 5.0 | 38x24.5 |
| EMH25U2516075 | 160 | 25 | 5.0 | 75x24.5 |
| EMH25S2521000 | 210 | 25 | 5.0 |
