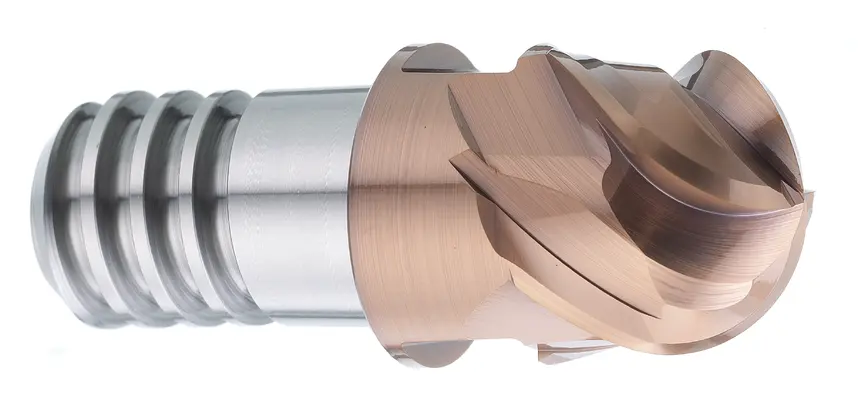

IMP..-B254TX Interchangeable Ball Nose End Mills
METRIC
ASIA
- Ball Nose End Mills- 4 Flutes
- S shape ball nose geometry enable to keep tool life longer.
- High radius precision of ball nose suitable to work
- on high hardness and high precision mold process.
- Nano multilayer coating enables to enhance lubrication and wear resistance.
Hardened Steel 40-70HRC
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| H | K | S | ||||
|---|---|---|---|---|---|---|
| GR5 | GR6 | GR7 | GR9 | GR15 | GR16 | GR17 |
| 38~48HRC Hardened Steel | 48~56HRC Hardened Steel | 56~68HRC Hardened Steel | Cast Iron | Titanium | Nickel | High Temp Alloys |
Product Specification
| Code No. | Dc | R | Lc | L1 | D1 | z |
|---|---|---|---|---|---|---|
| 0-0.03 | ±0.01 | mm | mm | mm | ||
| IMP10-B254TX100007 | 10 | 5 | 7.5 | 13.5 | 9.7 | 4 |
| IMP12-B254TX120009 | 12 | 6 | 9 | 16 | 11.7 | 4 |
| IMP16-B254TX160012 | 16 | 8 | 10 | 20 | 15.5 | 4 |
| IMP20-B254TX200015 | 20 | 10 | 15 | 25 | 19.5 | 4 |
