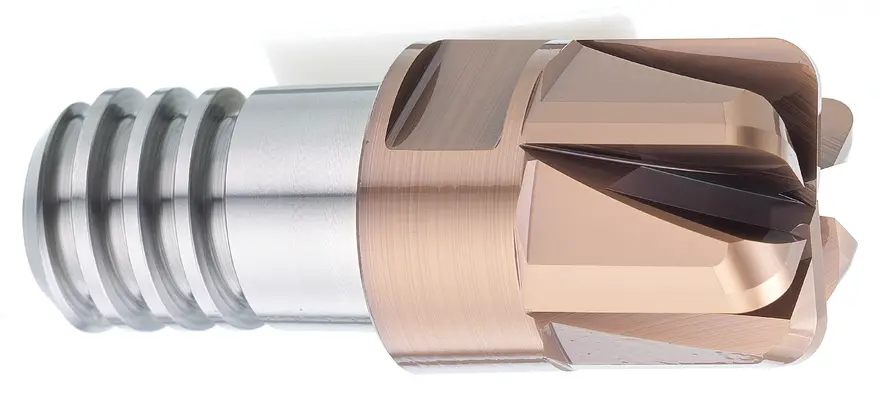

B254TX (EMH-BH) Interchangeable Ball Nose End Mill Heads
METRIC
ASIA
- Double-contact surface (taper and face)
- Solid carbide cutter head and body shank
- High accuracy, rigidity and efficiency in cutting
- High economy value with various interchangeable cutter heads
- Trapezoidal-designed thread reduces thread chipping
- Runout within 5μm Interchangeable
Hardened Steel 40-70HRC
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| H | K | S | ||||
|---|---|---|---|---|---|---|
| GR5 | GR6 | GR7 | GR9 | GR15 | GR16 | GR17 |
| 38~48HRC Hardened Steel | 48~56HRC Hardened Steel | 56~68HRC Hardened Steel | Cast Iron | Titanium | Nickel | High Temp Alloys |
Product Specification
| Code No. | Dc | R | Lc | L1 | D1 | z |
|---|---|---|---|---|---|---|
| 0 -0.02 | ±0.01 | mm | mm | mm | ||
| EMH10-BH10 | 10 | 5 | 11 | 16 | 9.7 | 4 |
| EMH12-BH12 | 12 | 6 | 13 | 19 | 11.7 | 4 |
| EMH16-BH16 | 16 | 8 | 17 | 25 | 15.5 | 4 |
| EMH20-BH20 | 20 | 10 | 21 | 31 | 19.5 | 4 |
| EMH25-BH25 | 25 | 12.5 | 26 | 39 | 24.5 | 4 |
