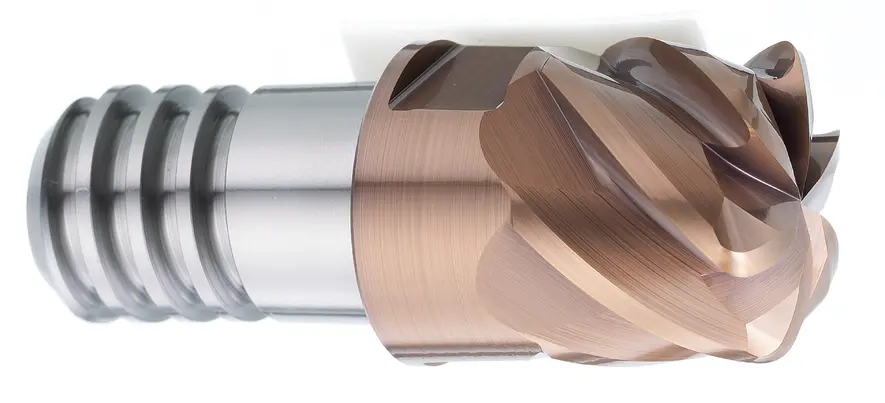

IMP..-F678TX Interchangeable High Feed End Mills
METRIC
ASIA
- High Feed End Mills – 6 Flutes
- Design with Special R curvature.
- Suitable for 3D profile surface machining, roughing in cutting different steel below 62HRC.
- Honing cutting edge with AlTiSiN Nano multilayer coating to improve tool life effectively.
Steel < 62HRC
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| H | K | |||
|---|---|---|---|---|
| GR4 | GR5 | GR6 | GR7 | GR9 |
| 30~38HRC Hardened Steel | 38~48HRC Hardened Steel | 48~56HRC Hardened Steel | 56~68HRC Hardened Steel | Cast Iron |
Product Specification
| Code No. | Dc | R | Lc | L1 | D1 | z |
|---|---|---|---|---|---|---|
| 0-0.03 | mm | mm | mm | mm | ||
| IMP12-F678TX120009R15 | 12 | 1.5 | 9 | 16 | 11.7 | 6 |
| IMP16-F678TX160012R20 | 16 | 2 | 12 | 20 | 15.5 | 6 |
| IMP20-F678TX200015R25 | 20 | 2.5 | 15 | 25 | 19.5 | 6 |
