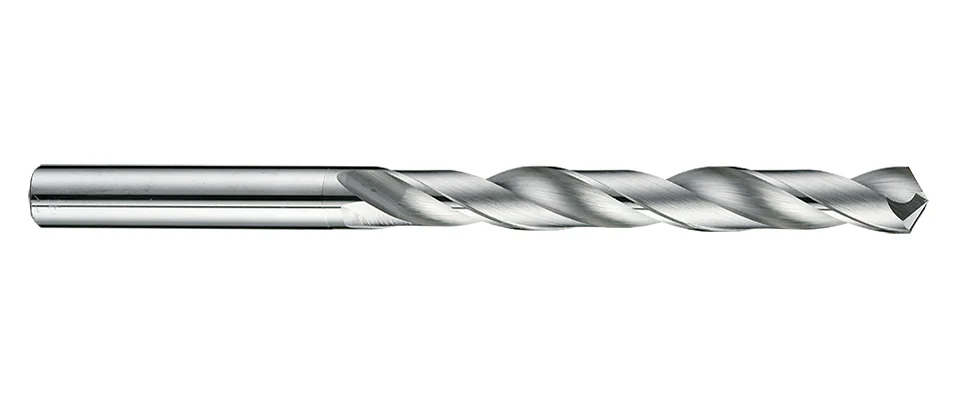

D413 Twist Drills

METRIC DIN
  • D413 118° X-type drill point design is easy for positioning.
  • Designed with sharp drill point.
  • Suitable for drilling with 5XD depth.
  • Application for drilling cast iron, aluminium, copper, plastic, composite materials...and etc.
  • VHM-carbide
  • uncoated bright
  • 5XD
  • 刀具刃數1-6
  • 118
  • DIN338
  • AL__Cu__PVC__CFRP
Inquiry Download
PREV NEXT

AL, Cu, PVC, CFRP

P H M K N S

Work Material

P K N
GR1 GR2 GR3 GR9 GR10 GR11 GR12 GR13
Carbon Steel <24HRC Low-alloyed Steel <30HRC Hi-alloyed Steel Cast Iron Aluminium Copper Plastics FRP CFRP Composite Material

Product Specification

Product Filter
Dc
Lc
L
Dc Lc L
h7 mm mm
1 12 34
1.1 14 36
1.2 16 38
1.3 16 38
1.4 18 40
1.5 18 40
1.6 20 43
1.7 20 43
1.8 22 46
1.9 22 46
2 24 49
2.1 24 49
2.2 27 53
2.3 27 53
2.4 30 57
2.5 30 57
2.6 30 57
2.7 33 61
2.8 33 61
2.9 33 61
3 33 61
3.1 36 65
3.2 36 65
3.3 36 65
3.4 39 70
3.5 39 70
3.6 39 70
3.7 39 70
3.8 43 75
3.9 43 75
4 43 75
4.1 43 75
4.2 43 75
4.3 47 80
4.4 47 80
4.5 47 80
4.6 47 80
4.7 47 80
4.8 52 86
4.9 52 86
5 52 86
5.1 52 86
5.2 52 86
5.3 52 86
5.4 57 93
5.5 57 93
5.6 57 93
5.7 57 93
5.8 57 93
5.9 57 93
6 57 93
6.1 63 101
6.2 63 101
6.3 63 101
6.4 63 101
6.5 63 101
6.6 63 101
6.7 63 101
6.8 69 109
6.9 69 109
7 69 109
7.1 69 109
7.2 69 109
7.3 69 109
7.4 69 109
7.5 69 109
7.6 75 117
7.7 75 117
7.8 75 117
7.9 75 117
8 75 117
8.1 75 117
8.2 75 117
8.3 75 117
8.4 75 117
8.5 75 117
8.6 81 125
8.7 81 125
8.8 81 125
8.9 81 125
9 81 125
9.1 81 125
9.2 81 125
9.3 81 125
9.4 81 125
9.5 81 125
9.6 87 133
9.7 87 133
9.8 87 133
9.9 87 133
10 87 133
10.2 87 133
10.5 87 133
10.8 94 142
11 94 142
11.5 94 142
12 101 151
12.5 101 151
13 101 151
