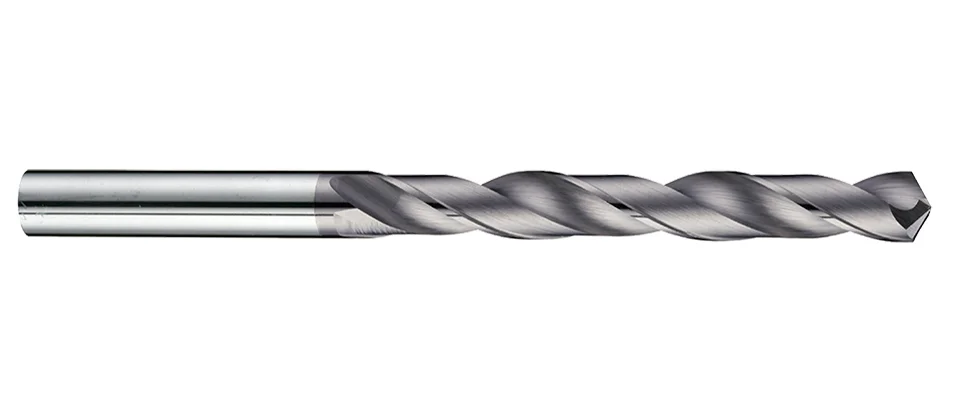

D433FN High Performance Drills

METRIC DIN
  • D433FN 140° S-type drill point design with centring and positioning function, reduce axial drilling force.
  • Designed with high chip evacuating flutes.
  • Good wear resistance and lubricating effect with Nano multilayer coating.
  • Suitable for drilling with 5XD depth.
  • Application for drilling steels below 48HRC, cast iron...and etc.
  • VHM-carbide
  • Alticrn
  • 5XD
  • 刀具刃數1-6
  • 夾角140度
  • DIN338
  • steel-48hrc_stainless-cast_iron
Inquiry Download
PREV NEXT

Steel < 48HRC

P H M K N S

Work Material

P H M K N
GR1 GR2 GR3 GR4 GR5 GR8 GR9 GR11
Carbon Steel <24HRC Low-alloyed Steel <30HRC Hi-alloyed Steel 30~38HRC Hardened Steel 38~48HRC Hardened Steel Stainless Steel Cast Iron Copper

Product Specification

Product Filter
Dc
Lc
L
Dc Lc L
h7 mm mm
1 12 34
1.1 14 36
1.2 16 38
1.3 16 38
1.4 18 40
1.5 18 40
1.6 20 43
1.7 20 43
1.8 22 46
1.9 22 46
2 24 49
2.1 24 49
2.2 27 53
2.3 27 53
2.4 30 57
2.5 30 57
2.6 30 57
2.7 33 61
2.8 33 61
2.9 33 61
3 33 61
3.1 36 65
3.2 36 65
3.3 36 65
3.4 39 70
3.5 39 70
3.6 39 70
3.7 39 70
3.8 43 75
3.9 43 75
4 43 75
4.1 43 75
4.2 43 75
4.3 47 80
4.4 47 80
4.5 47 80
4.6 47 80
4.7 47 80
4.8 52 86
4.9 52 86
5 52 86
5.1 52 86
5.2 52 86
5.3 52 86
5.4 57 93
5.5 57 93
5.6 57 93
5.7 57 93
5.8 57 93
5.9 57 93
6 57 93
6.1 63 101
6.2 63 101
6.3 63 101
6.4 63 101
6.5 63 101
6.6 63 101
6.7 63 101
6.8 69 109
6.9 69 109
7 69 109
7.1 69 109
7.2 69 109
7.3 69 109
7.4 69 109
7.5 69 109
7.6 75 117
7.7 75 117
7.8 75 117
7.9 75 117
8 75 117
8.1 75 117
8.2 75 117
8.3 75 117
8.4 75 117
8.5 75 117
8.6 81 125
8.7 81 125
8.8 81 125
8.9 81 125
9 81 125
9.1 81 125
9.2 81 125
9.3 81 125
9.4 81 125
9.5 81 125
9.6 87 133
9.7 87 133
9.8 87 133
9.9 87 133
10 87 133
10.2 87 133
10.5 87 133
10.8 94 142
11 94 142
11.5 94 142
12 101 151
12.5 101 151
13 101 151
