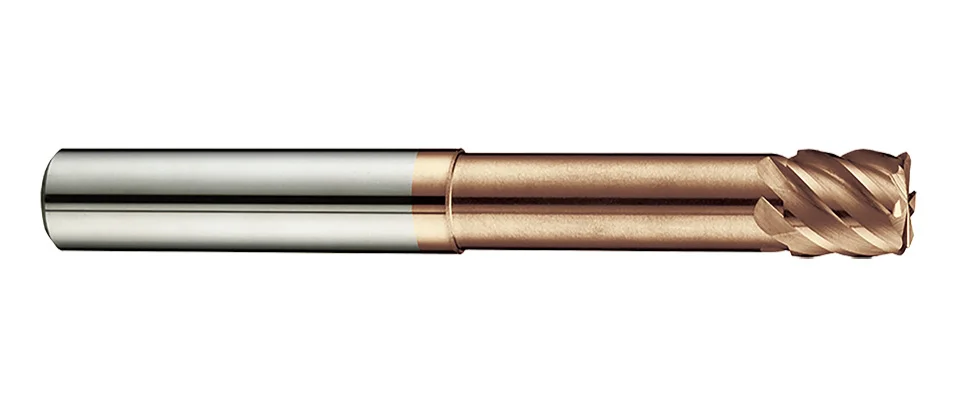

F614TX Toric End Mills
METRIC
DIN
- Design with high hardness, rigidity and negative rake angle.
- Honing cutting edge with AlTiSiN Nano multilayer coating to improve tool life effectively.
- Suitable for profile surface machining, roughing and finishing in cutting different steel below 62HRC.
Hardened Steel 40-70HRC
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| H | K | ||
|---|---|---|---|
| GR5 | GR6 | GR7 | GR9 |
| 38~48HRC Hardened Steel | 48~56HRC Hardened Steel | 56~68HRC Hardened Steel | Cast Iron |
Product Specification
| Dc | R | Lc | L | d | L1 | D1 | z |
|---|---|---|---|---|---|---|---|
| 0 -0.02 | 0 -0.02 | mm | mm | h5 | mm | mm | |
| 3 | R0.5 | 4 | 70 | 6 | 27 | 2.8 | 4 |
| 4 | R0.5 | 5 | 70 | 6 | 29 | 3.7 | 4 |
| 5 | R0.5 | 6 | 70 | 6 | 31 | 4.6 | 4 |
| 6 | R0.5 | 7 | 70 | 6 | 33 | 5.5 | 6 |
| 8 | R0.5 | 9 | 80 | 8 | 43 | 7.4 | 6 |
| 10 | R0.5 | 11 | 90 | 10 | 49 | 9.2 | 6 |
| 12 | R0.5 | 13 | 100 | 12 | 54 | 11 | 6 |
| 6 | R1 | 7 | 70 | 6 | 33 | 5.5 | 6 |
| 8 | R1 | 9 | 80 | 8 | 43 | 7.4 | 6 |
| 10 | R1 | 11 | 90 | 10 | 49 | 9.2 | 6 |
| 12 | R1 | 13 | 100 | 12 | 54 | 11 | 6 |
