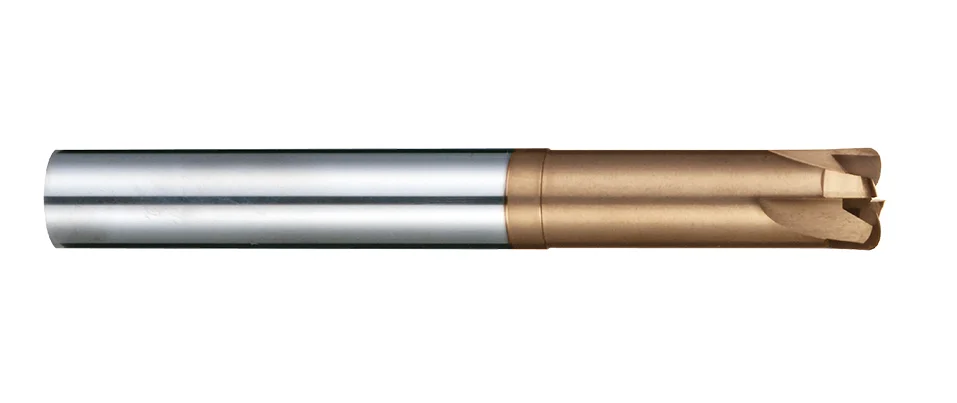

F676TX High Feed End Mills

METRIC DIN
  • Design with Special R curvature.
  • Honing cutting edge with AlTiSiN Nano multilayer coating to improve tool life effectively.
  • Suitable for profile surface machining, roughing in cutting different steel below 62HRC.
  • VHM-carbide
  • 塗層種類4
  • 螺旋角 1-1
  • 刀具刃數3-1
  • N 0度- 55頁
  • 切削邊緣4
  • steel62hrc
  • 6
  • 機械加工方式 1-1
  • 機械加工方式 2-2
  • 2-4
Inquiry Download
PREV NEXT

Steel < 62HRC

P H M K N S

Work Material

P H K
GR1 GR2 GR3 GR4 GR5 GR6 GR7 GR9
Carbon Steel <24HRC Low-alloyed Steel <30HRC Hi-alloyed Steel 30~38HRC Hardened Steel 38~48HRC Hardened Steel 48~56HRC Hardened Steel 56~68HRC Hardened Steel Cast Iron

Product Specification

Product Filter
Dc
R
Lc
L
d
L1
z
Dc R Lc L d L1 D1 z
0 -0.02 Progrmmable mm mm h5 mm mm
3 0.37 2 70 6 12 2.8 4
4 0.47 2 70 6 16 3.7 4
5 0.6 2.5 70 6 20 4.6 4
6 0.73 3 70 6 25 5.5 4
8 0.98 4 80 8 30 7.4 4
10 1.23 5 90 10 35 9.2 4
12 1.65 6 100 12 40 11 4
