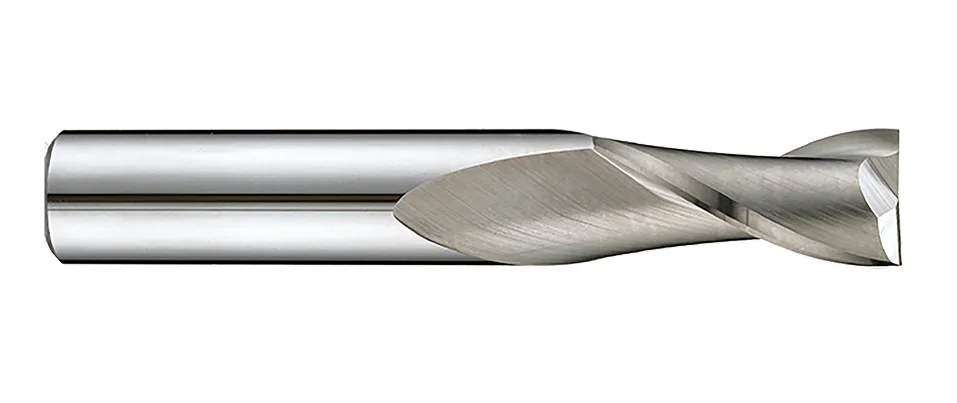

E172 Universal End Mills
METRIC
ANSI
- Center Cutting tools are used in a variety of applications including plunging, drilling or ramping……
- TiAlN is one of abrasive resistant coatings. It is commonly used for machining aircraft and aerospace material, Nickel Alloys, Stainless Steels, Titanium, Cast Iron and Steel.
- ※Coated TiAlN version is available.
Steel < 30HRC
P | H | M | K | N | S |
---|---|---|---|---|---|
Work Material
P | M | K | N | S | |||||
---|---|---|---|---|---|---|---|---|---|
GR1 | GR2 | GR3 | GR8 | GR9 | GR10 | GR11 | GR12 | GR15 | GR16 |
Carbon Steel | <24HRC Low-alloyed Steel | <30HRC Hi-alloyed Steel | Stainless Steel | Cast Iron | Aluminium | Copper | Plastics | Titanium | Nickel |
Product Specification
Dc | Lc | L | d | z |
---|---|---|---|---|
0 -0.03 | mm | mm | h6 | |
0.2 | 0.5 | 38 | 3 | 2 |
0.3 | 0.8 | 38 | 3 | 2 |
0.4 | 1 | 38 | 3 | 2 |
0.5 | 1.2 | 38 | 3 | 2 |
0.6 | 1.5 | 38 | 3 | 2 |
0.7 | 1.8 | 38 | 3 | 2 |
0.8 | 2 | 38 | 3 | 2 |
0.9 | 2.5 | 38 | 3 | 2 |
1 | 3 | 38 | 3 | 2 |
1.5 | 5 | 38 | 3 | 2 |
2 | 6 | 38 | 3 | 2 |
2.5 | 7 | 38 | 3 | 2 |
3 | 9 | 38 | 3 | 2 |
3.5 | 12 | 50 | 4 | 2 |
4 | 14 | 50 | 4 | 2 |
4.5 | 14 | 50 | 5 | 2 |
5 | 16 | 50 | 5 | 2 |
5.5 | 16 | 50 | 6 | 2 |
6 | 20 | 63 | 6 | 2 |
6.5 | 20 | 63 | 8 | 2 |
7 | 20 | 63 | 8 | 2 |
7.5 | 20 | 63 | 8 | 2 |
8 | 20 | 63 | 8 | 2 |
8.5 | 22 | 72 | 10 | 2 |
9 | 22 | 72 | 10 | 2 |
9.5 | 22 | 72 | 10 | 2 |
10 | 22 | 72 | 10 | 2 |
11 | 26 | 75 | 12 | 2 |
12 | 26 | 75 | 12 | 2 |
13 | 32 | 89 | 14 | 2 |
14 | 32 | 89 | 14 | 2 |
15 | 32 | 89 | 16 | 2 |
16 | 32 | 89 | 16 | 2 |
17 | 38 | 100 | 18 | 2 |
18 | 38 | 100 | 18 | 2 |
20 | 38 | 100 | 20 | 2 |
