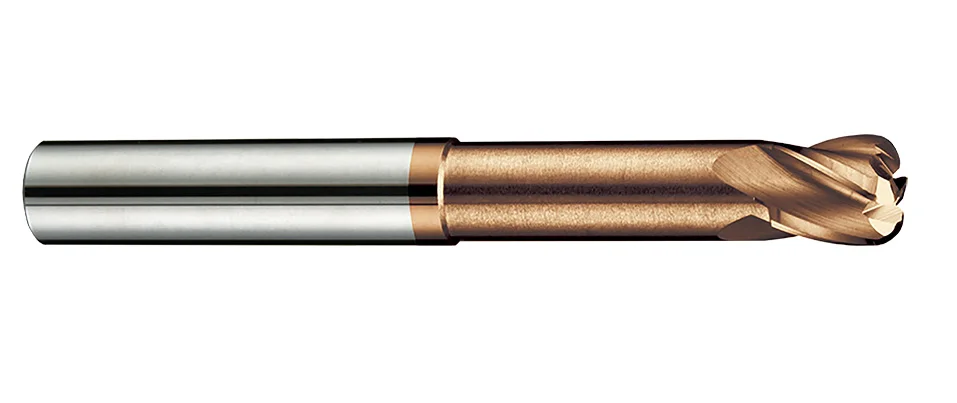

F619TX Toric End Mills

METRIC DIN
  • Honing cutting edge with AlTiSiN Nano multilayer coating to improve tool life effectively.
  • Suitable for profile surface machining, roughing and finishing in cutting different steel below 62HRC and cast Iron.
  • VHM-carbide
  • 塗層種類4
  • 螺旋角 2-2
  • 刀具刃數3-1
  • Nr5
  • steel62hrc
  • 機械加工方式 1-1
  • 機械加工方式 1-2
  • 機械加工方式 2-2
  • 2-4
Inquiry Download
PREV NEXT

Steel < 62HRC

P H M K N S

Work Material

P H K
GR1 GR2 GR3 GR4 GR5 GR6 GR7 GR9
Carbon Steel <24HRC Low-alloyed Steel <30HRC Hi-alloyed Steel 30~38HRC Hardened Steel 38~48HRC Hardened Steel 48~56HRC Hardened Steel 56~68HRC Hardened Steel Cast Iron

Product Specification

Product Filter
Dc
R
Lc
L
d
L1
z
Dc R Lc L d L1 D1 z
0 -0.02 ±0.02 mm mm h5 mm mm
6 R0.5 7 70 6 33 5.5 4
6 R1 7 70 6 33 5.5 4
6 R1.5 7 70 6 33 5.5 4
8 R0.5 9 80 8 43 7.4 4
8 R1 9 80 8 43 7.4 4
8 R2 9 80 8 43 7.4 4
10 R0.5 11 90 10 49 9.2 4
10 R1 11 90 10 49 9.2 4
10 R2.5 11 90 10 49 9.2 4
12 R0.5 13 100 12 54 11 4
12 R1 13 100 12 54 11 4
12 R2 13 100 12 54 11 4
12 R3 13 100 12 54 11 4
16 R2 17 115 16 66 14.5 4
16 R4 17 115 16 66 14.5 4
