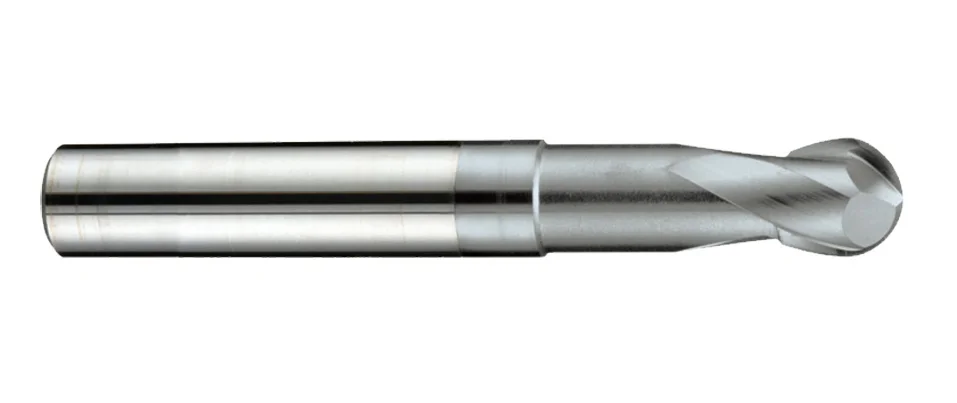

F623HX Ball Nose End Mills
METRIC
DIN
- Designed with S-style ball nose geometry.
- Reduce surface cutting resistance.
- Good wear resistance and lubricating effect with Nano multilayer coating.
- With MG carbide material is good for cutting materials < 48HRC.
- With sharp cutting edge is good for cutting different steels below 48HRC as well as cast iron.
- Application for finishing profile cutting.
Steel < 48HRC
P | H | M | K | N | S |
---|---|---|---|---|---|
Work Material
P | H | M | K | N | |||
---|---|---|---|---|---|---|---|
GR1 | GR2 | GR3 | GR4 | GR5 | GR8 | GR9 | GR11 |
Carbon Steel | <24HRC Low-alloyed Steel | <30HRC Hi-alloyed Steel | 30~38HRC Hardened Steel | 38~48HRC Hardened Steel | Stainless Steel | Cast Iron | Copper |
Product Specification
Dc | R | Lc | L | d | L1 | D1 | z |
---|---|---|---|---|---|---|---|
0 -0.02 | ±0.005 | mm | mm | h5 | mm | mm | |
1 | 0.5R | 1 | 50 | 6 | 3 | 0.95 | 2 |
1.5 | 0.75R | 2 | 50 | 6 | 4 | 1.4 | 2 |
2 | 1R | 3 | 57 | 6 | 6 | 1.9 | 2 |
3 | 1.5R | 4 | 57 | 6 | 9 | 2.8 | 2 |
4 | 2R | 5 | 57 | 6 | 12 | 3.7 | 2 |
5 | 2.5R | 6 | 57 | 6 | 15 | 4.6 | 2 |
6 | 3R | 7 | 57 | 6 | 20 | 5.5 | 2 |
8 | 4R | 9 | 63 | 8 | 26 | 7.4 | 2 |
10 | 5R | 11 | 72 | 10 | 31 | 9.2 | 2 |
12 | 6R | 13 | 83 | 12 | 37 | 11 | 2 |
