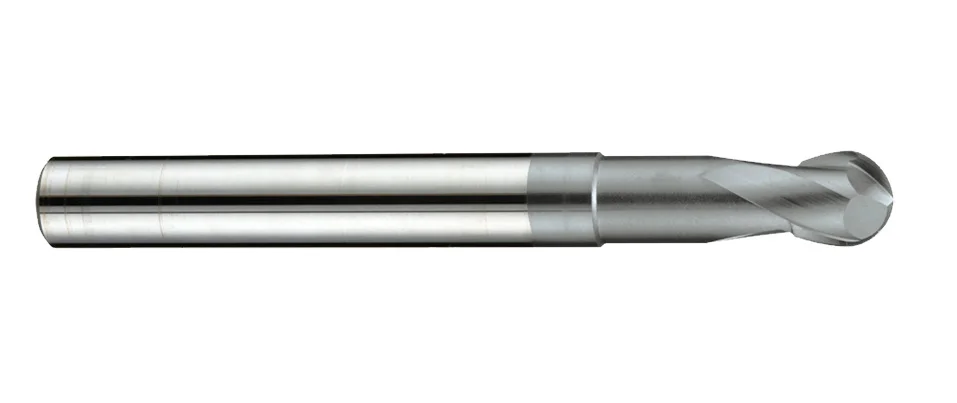

F624HX Ball Nose End Mills

METRIC DIN
  • Designed with S-style ball nose geometry.
  • Reduce surface cutting resistance.
  • Good wear resistance and lubricating effect with Nano multilayer coating.
  • With MG carbide material is good for cutting materials < 48HRC.
  • With sharp cutting edge is good for cutting different steels below 48HRC as well as cast iron.
  • Application for finishing profile cutting.
  • VHM-carbide
  • ALTiCrNHX
  • 螺旋角 2-2
  • 刀具刃數1-5
  • Nr5
  • 切削邊緣2
  • 機械加工方式 4-2
  • 機械加工方式 4-3
  • 機械加工方式 4-4
Inquiry Download
PREV NEXT

Steel < 48HRC

P H M K N S

Work Material

P H M K N
GR1 GR2 GR3 GR4 GR5 GR8 GR9 GR11
Carbon Steel <24HRC Low-alloyed Steel <30HRC Hi-alloyed Steel 30~38HRC Hardened Steel 38~48HRC Hardened Steel Stainless Steel Cast Iron Copper

Product Specification

Product Filter
Dc
Cutting Diameter
  • 3
  • 4
  • 5
  • 6
  • 8
  • 10
  • 12
R
Corner Radius
  • 1.5R
  • 2R
  • 3R
  • 4R
  • 5R
  • 6R
Lc
Length of Cutting
  • 4
  • 5
  • 6
  • 7
  • 9
  • 11
  • 13
L
Overall Length
  • 70
  • 80
  • 100
  • 110
d
Shank Diameter
  • 6
  • 8
  • 10
  • 12
L1
Effective Length
  • 9
  • 12
  • 15
  • 20
  • 26
  • 31
  • 37
z
Number of Flute
  • 2
Dc R Lc L d L1 D1 z
0 -0.02 ±0.005 mm mm h5 mm mm
3 1.5R 4 70 6 9 2.8 2
4 2R 5 70 6 12 3.7 2
5 2R 6 80 6 15 4.6 2
6 3R 7 80 6 20 5.5 2
8 4R 9 100 8 26 7.4 2
10 5R 11 100 10 31 9.2 2
12 6R 13 110 12 37 11 2
