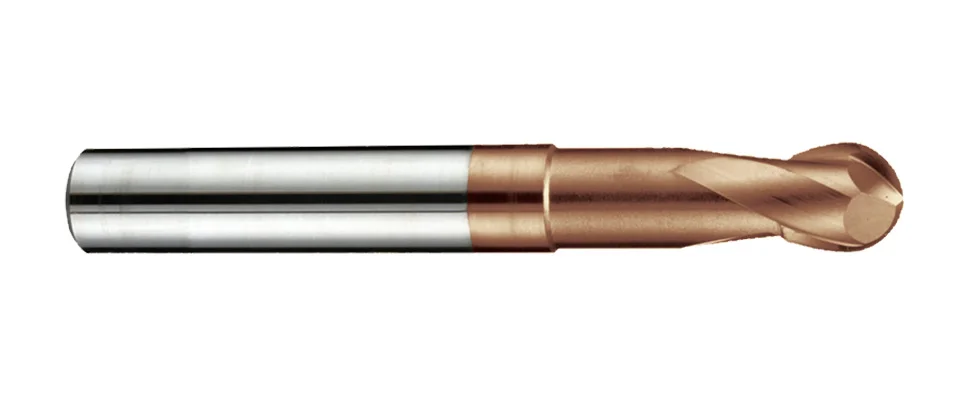

F625TX Ball Nose End Mills
METRIC
DIN
- Designed with S-style ball nose geometry.
- Reduce surface cutting resistance.
- Good wear resistance and lubricating effect with Nano multilayer coating.
- With SMG carbide material is good for cutting hardened materials < 70HRC.
- With stronger strength of cutting edge is suitable for hardened steels from 40~70HRC.
- Application for finishing profile cutting.
Hardened Steel<40-70HRC
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| H | ||
|---|---|---|
| GR5 | GR6 | GR7 |
| 38~48HRC Hardened Steel | 48~56HRC Hardened Steel | 56~68HRC Hardened Steel |
Product Specification
| Dc | R | Lc | L | d | L1 | D1 | z |
|---|---|---|---|---|---|---|---|
| 0 -0.02 | ±0.005 | mm | mm | h5 | mm | mm | |
| 1 | 0.5R | 1 | 50 | 6 | 3 | 0.95 | 2 |
| 1.5 | 0.75R | 2 | 50 | 6 | 4 | 1.4 | 2 |
| 2 | 1R | 3 | 57 | 6 | 6 | 1.9 | 2 |
| 3 | 1.5R | 4 | 57 | 6 | 9 | 2.8 | 2 |
| 4 | 2R | 5 | 57 | 6 | 12 | 3.7 | 2 |
| 5 | 2.5R | 6 | 57 | 6 | 15 | 4.6 | 2 |
| 6 | 3R | 7 | 57 | 6 | 20 | 5.5 | 2 |
| 8 | 4R | 9 | 63 | 8 | 26 | 7.4 | 2 |
| 10 | 5R | 11 | 72 | 10 | 31 | 9.2 | 2 |
| 12 | 6R | 13 | 83 | 12 | 37 | 11 | 2 |
