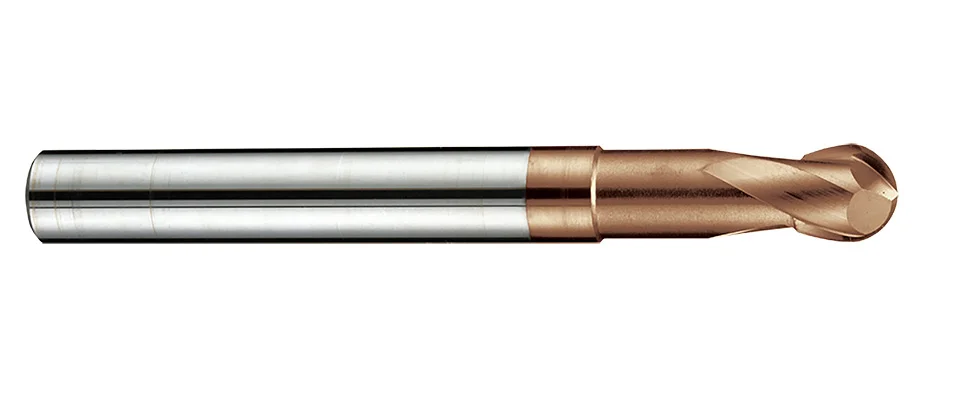

F626TX Ball Nose End Mills
METRIC
DIN
- Designed with S-style ball nose geometry.
- Reduce surface cutting resistance.
- Good wear resistance and lubricating effect with Nano multilayer coating.
- With SMG carbide material is good for cutting hardened materials < 70HRC.
- With stronger strength of cutting edge is suitable for hardened steels from 40~70HRC.
- Application for finishing profile cutting.
Hardened Steel 40-70HRC
P | H | M | K | N | S |
---|---|---|---|---|---|
Work Material
H | ||
---|---|---|
GR5 | GR6 | GR7 |
38~48HRC Hardened Steel | 48~56HRC Hardened Steel | 56~68HRC Hardened Steel |
Product Specification
Dc | R | Lc | L | d | L1 | D1 | z |
---|---|---|---|---|---|---|---|
0 -0.02 | ±0.005 | mm | mm | h5 | mm | mm | |
3 | 1.5R | 4 | 70 | 6 | 9 | 2.8 | 2 |
4 | 2R | 5 | 70 | 6 | 12 | 3.7 | 2 |
5 | 2.5R | 6 | 80 | 6 | 15 | 4.6 | 2 |
6 | 3R | 7 | 80 | 6 | 20 | 5.5 | 2 |
8 | 4R | 9 | 100 | 8 | 26 | 7.4 | 2 |
10 | 5R | 11 | 100 | 10 | 31 | 9.2 | 2 |
12 | 6R | 13 | 110 | 12 | 37 | 11 | 2 |
