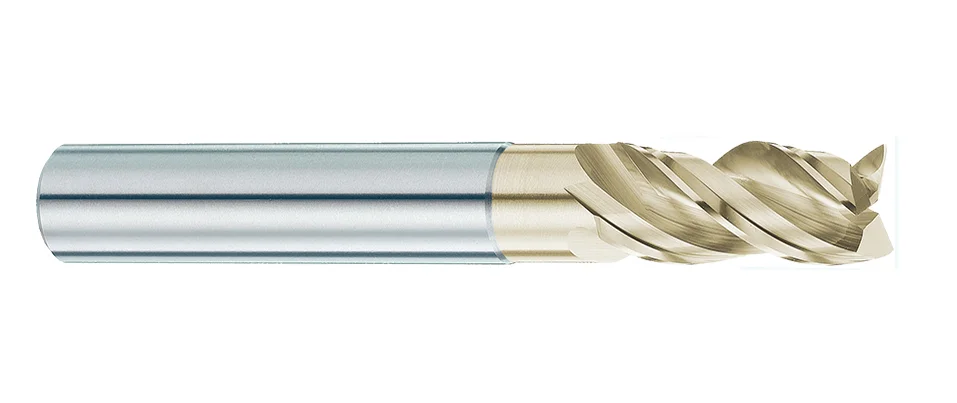

F631ZX End Mills For Aluminium
METRIC
DIN
- Designed with three variable helix geometry and three unequal flutes.
- Designed with sharp cutting edge, high removal cutting geometry, and fine grinding smooth surface to prevent sticking problem.
- Adopting ZrN coating without AlTi in the formula would prevent from chemical affinity with Alu metal and enhance tool life by gaining better surface hardness.
- Suitable for cutting aluminium.
- Application for HPC/ roughing cutting process with high chip removal rate as well as for HSC/ finishing cutting with fine and smooth surface finishing.
Aluminium
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| N |
|---|
| GR10 |
| Aluminium |
Product Specification
| Dc | Lc | L | d | L1 | D1 | z |
|---|---|---|---|---|---|---|
| 0 -0.02 | mm | mm | h5 | mm | mm | |
| 3 | 8 | 57 | 6 | 14 | 2.8 | 3 |
| 4 | 11 | 57 | 6 | 16 | 3.8 | 3 |
| 5 | 13 | 57 | 6 | 18 | 4.8 | 3 |
| 6 | 13 | 57 | 6 | 20 | 5.8 | 3 |
| 8 | 19 | 63 | 8 | 26 | 7.7 | 3 |
| 10 | 22 | 72 | 10 | 31 | 9.7 | 3 |
| 12 | 26 | 83 | 12 | 37 | 11.6 | 3 |
| 16 | 32 | 92 | 16 | 43 | 15.5 | 3 |
| 20 | 38 | 104 | 20 | 53 | 19.5 | 3 |
