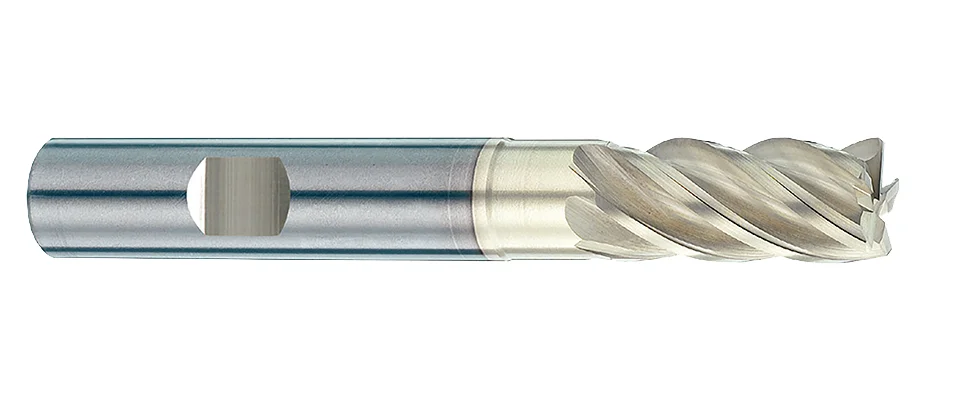

F653SX-HB End Mills With Corner Radius For Difficult To Cut Materials
METRIC
DIN
- Designed with two variable helix geometry and two unequal flutes.
- Sharp cutting edge is good for cutting toughness materials.
- Designed with high removal cutting geometry.
- Improved cutting edge strength with corner radius.
- Good wear resistance and lubricating effect with Nano multilayer coating.
- Sharp cutting edge is suitable for cutting stainless steel, titanium, nickel and high temp alloys… etc.
- Application for HPC/ roughing cutting and HSC/ finishing cutting.
Stainless, Titanium, Nickel
P | H | M | K | N | S |
---|---|---|---|---|---|
Work Material
P | H | M | S | |||||
---|---|---|---|---|---|---|---|---|
GR1 | GR2 | GR3 | GR4 | GR5 | GR8 | GR15 | GR16 | GR17 |
Carbon Steel | <24HRC Low-alloyed Steel | <30HRC Hi-alloyed Steel | 30~38HRC Hardened Steel | 38~48HRC Hardened Steel | Stainless Steel | Titanium | Nickel | High Temp Alloys |
Product Specification
Dc | R | Lc | L | d | L1 | D1 | z |
---|---|---|---|---|---|---|---|
0 -0.02 | mm | mm | h5 | mm | mm | mm | |
3 | R0.5 | 8 | 57 | 6 | 14 | 2.8 | 5 |
4 | R0.5 | 11 | 57 | 6 | 16 | 3.8 | 5 |
5 | R0.5 | 13 | 57 | 6 | 18 | 4.8 | 5 |
6 | R0.5 | 13 | 57 | 6 | 20 | 5.8 | 5 |
8 | R0.5 | 19 | 63 | 8 | 26 | 7.7 | 5 |
10 | R0.5 | 22 | 72 | 10 | 31 | 9.7 | 5 |
12 | R0.5 | 26 | 83 | 12 | 37 | 11.6 | 5 |
16 | R0.5 | 32 | 92 | 16 | 43 | 15.5 | 5 |
20 | R0.5 | 38 | 104 | 20 | 53 | 19.5 | 5 |
