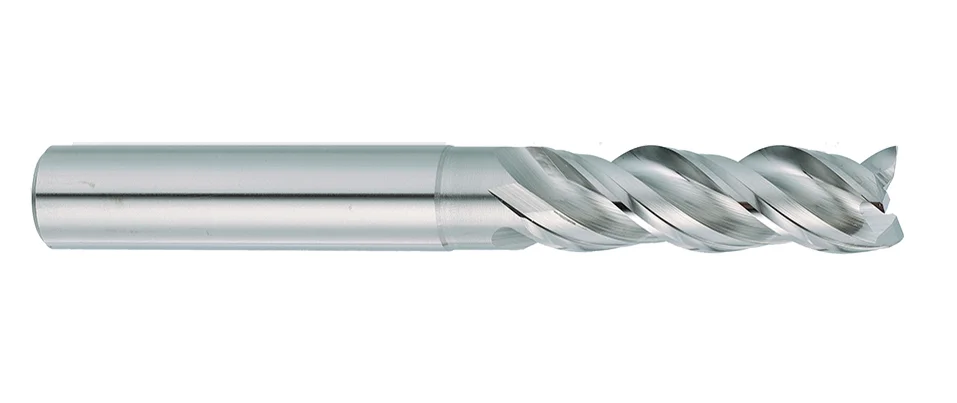

F632 End Mills For Aluminium
METRIC
DIN
- Designed with three variable helix geometry and three unequal flutes.
- Designed with sharp cutting edge, high removal cutting geometry, and fine grinding smooth surface to prevent sticking problem.
- Adopting ZrN coating without AlTi in the formula would prevent from chemical affinity with Alu metal and enhance tool life by gaining better surface hardness.
- Suitable for cutting aluminium.
- Application for HPC/ roughing cutting process with high chip removal rate as well as for HSC/ finishing cutting with fine and smooth surface finishing.
Aluminium
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| N |
|---|
| GR10 |
| Aluminium |
Product Specification
| Dc | Lc | L | d | L1 | D1 | z |
|---|---|---|---|---|---|---|
| 0 -0.02 | mm | mm | h5 | mm | mm | |
| 6 | 19 | 63 | 6 | 26 | 5.8 | 3 |
| 8 | 28 | 72 | 8 | 35 | 7.7 | 3 |
| 10 | 34 | 84 | 10 | 43 | 9.7 | 3 |
| 12 | 40 | 97 | 12 | 51 | 11.6 | 3 |
| 16 | 48 | 108 | 16 | 59 | 15.5 | 3 |
| 20 | 56 | 122 | 20 | 71 | 19.5 | 3 |
