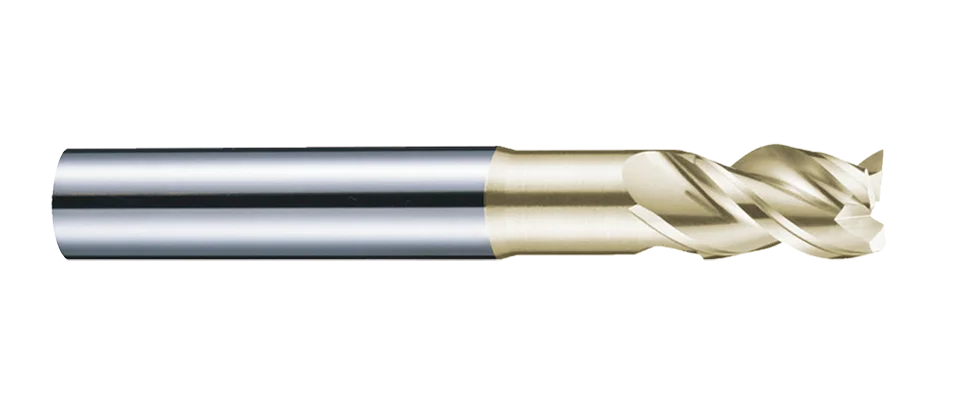

F607ZX Toric End Mills For Aluminium
METRIC
DIN
- 3 unequal flutes, 3 unequal helix angels.
- Designed with sharp cutting edge, high removal cutting geometry, and fine grinding smooth surface to prevent sticking problem.
- Cutting edge with corner radius for profile machining.
- Adopting ZrN coating without AlTi in the formula would prevent from chemical affinity with Alu metal and enhance tool life by gaining better surface hardness.
Aluminium
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| N |
|---|
| GR10 |
| Aluminium |
Product Specification
| Dc | Lc | L | d | L1 | D1 | z |
|---|---|---|---|---|---|---|
| 0 -0.02 | mm | mm | h5 | mm | mm | |
| 3 | 4.5 | 57 | 6 | 9 | 2.8 | 3 |
| 4 | 6 | 57 | 6 | 12 | 3.7 | 3 |
| 5 | 7.5 | 57 | 6 | 15 | 4.6 | 3 |
| 6 | 9 | 57 | 6 | 20 | 5.5 | 3 |
| 8 | 12 | 63 | 8 | 26 | 7.4 | 3 |
| 10 | 15 | 72 | 10 | 31 | 9.2 | 3 |
| 12 | 18 | 83 | 12 | 37 | 11 | 3 |
| 16 | 24 | 92 | 16 | 43 | 14.5 | 3 |
| 20 | 30 | 104 | 20 | 53 | 18.2 | 3 |
