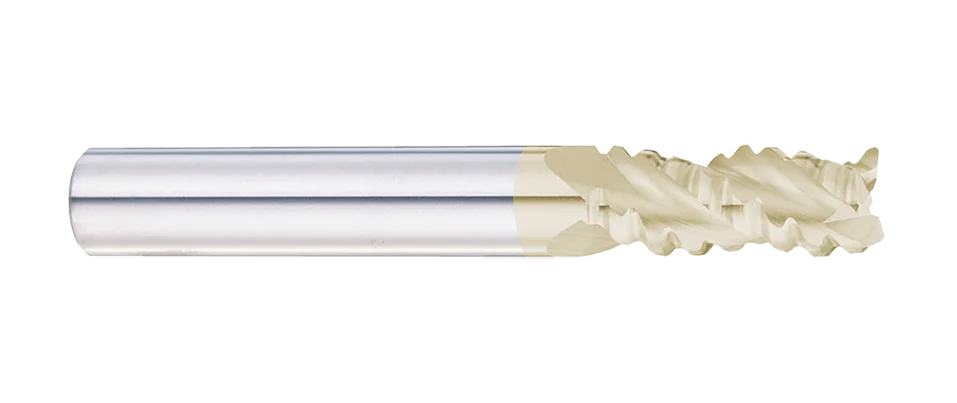

F642ZX Roughing End Mills For Aluminium
METRIC
DIN
- Coarse tooth staggered chip breaker design on cutting flutes are good for easily chip breaking.
- Adopting ZrN coating without AlTi in the formula would prevent from chemical affinity with Alu metal and enhance tool life by gaining better surface hardness.
- Suitable for cutting aluminium.
- Application for roughing cutting with high chip removal rate.
Aluminium
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| N |
|---|
| GR10 |
| Aluminium |
Product Specification
| Dc | Lc | L | d |
|---|---|---|---|
| 0 -0.02 | mm | mm | h5 |
| 3 | 8 | 57 | 6 |
| 4 | 11 | 57 | 6 |
| 5 | 13 | 57 | 6 |
| 6 | 13 | 57 | 6 |
| 8 | 19 | 63 | 8 |
| 10 | 22 | 72 | 10 |
| 12 | 26 | 83 | 12 |
| 16 | 32 | 92 | 16 |
| 20 | 38 | 104 | 20 |
