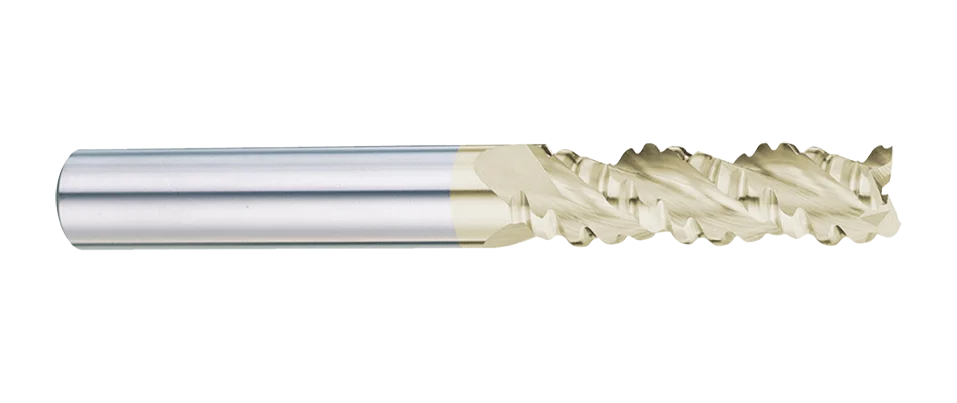

F643ZX Roughing End Mills For Aluminium

METRIC DIN
  • Coarse tooth staggered chip breaker design on cutting flutes are good for easily chip breaking.
  • Adopting ZrN coating without AlTi in the formula would prevent from chemical affinity with Alu metal and enhance tool life by gaining better surface hardness.
  • Suitable for cutting aluminium.
  • Application for roughing cutting with high chip removal rate.
  • VHM-carbide
  • Aluminum
  • 6
  • 螺旋角 4-2
  • 3_4Z
  • N 15度- 135頁
  • corner edge 45度 (0.3-0.5) - 117頁
  • 機械加工方式 2-3
  • 機械加工方式 4-5
  • 機械加工方式 1-1
  • 機械加工方式 1-2
Inquiry Download
PREV NEXT

Aluminium

P H M K N S

Work Material

N
GR10
Aluminium

Product Specification

Product Filter
Dc
Cutting Diameter
  • 6
  • 8
  • 10
  • 12
  • 16
  • 20
Lc
Length of Cutting
  • 19
  • 28
  • 34
  • 40
  • 48
  • 56
L
Overall Length
  • 63
  • 72
  • 84
  • 97
  • 108
  • 122
d
Shank Diameter
  • 6
  • 8
  • 10
  • 12
  • 16
  • 20
Dc Lc L d
0 -0.02 mm mm h5
6 19 63 6
8 28 72 8
10 34 84 10
12 40 97 12
16 48 108 16
20 56 122 20
