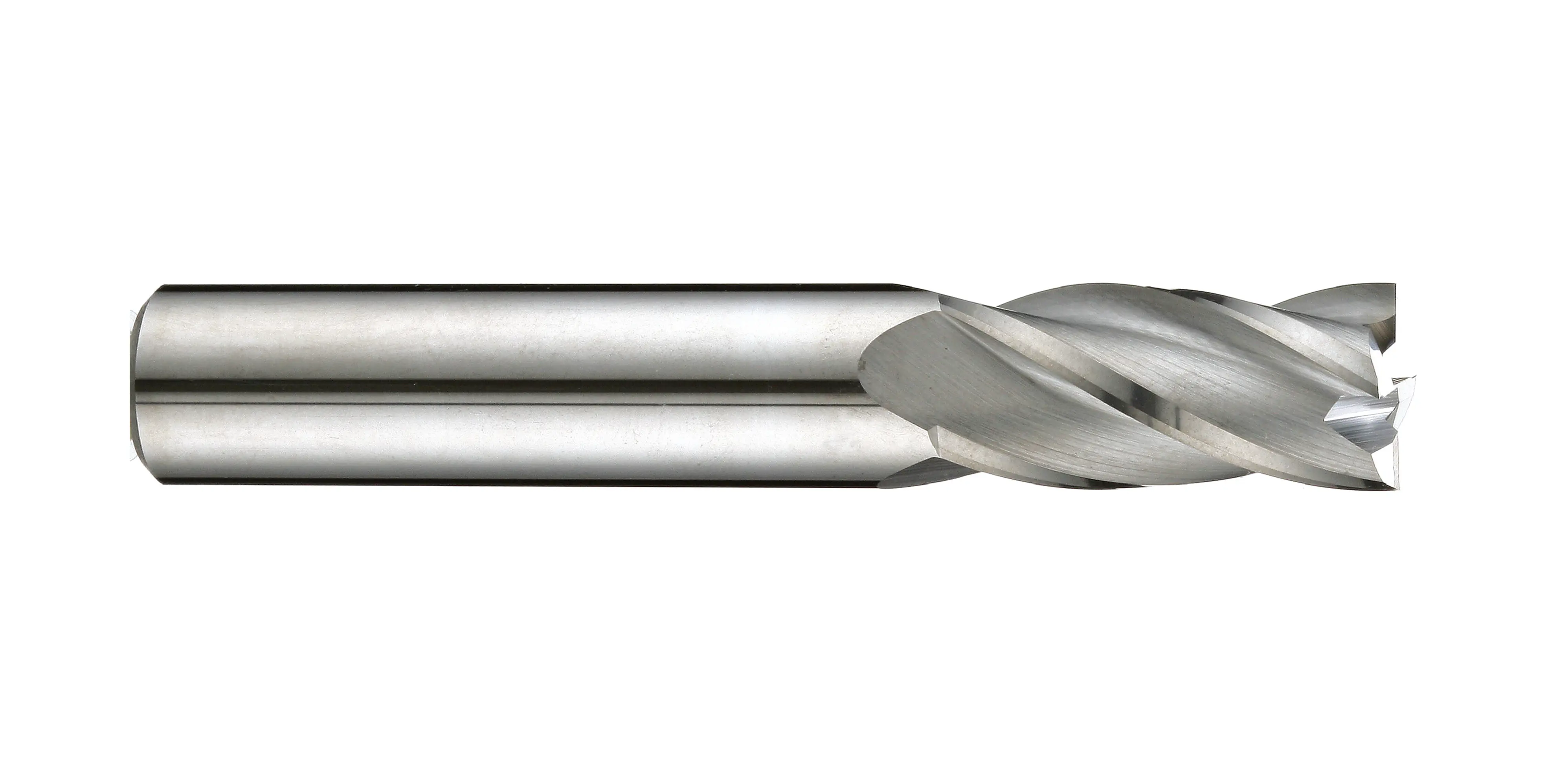

E174 Finishing End Mills

METRIC ANSI
  • Center Cutting tools are used in a variety of applications including plunging, drilling or ramping……
  • TiAlN is one of abrasive resistant coatings. It is commonly used for machining aircraft and aerospace material, Nickel Alloys, Stainless Steels, Titanium, Cast Iron and Steel.
  • ※Coated TiAlN version is available.
  • MG carbide
  • Bright_TiAlN
  • 螺旋角 2-2
  • 刀具刃數3-1
  • Hr10
  • 90
  • 1
  • 2
  • 3
  • 機械加工方式 4-5
Inquiry Download
PREV NEXT

Steel < 30HRC

P H M K N S

Work Material

P M K N S
GR1 GR2 GR3 GR8 GR9 GR10 GR11 GR12 GR15 GR16
Carbon Steel <24HRC Low-alloyed Steel <30HRC Hi-alloyed Steel Stainless Steel Cast Iron Aluminium Copper Plastics Titanium Nickel

Product Specification

Product Filter
Dc
Lc
L
d
z
Dc Lc L d z
0 -0.03 mm mm h6
1 3 38 3 4
1.5 5 38 3 4
2 6 38 3 4
2.5 7 38 3 4
3 9 38 3 4
3.5 12 50 4 4
4 14 50 4 4
4.5 14 50 5 4
5 16 50 5 4
5.5 16 50 6 4
6 20 63 6 4
6.5 20 63 8 4
7 20 63 8 4
7.5 20 63 8 4
8 20 63 8 4
8.5 22 72 10 4
9 22 72 10 4
9.5 22 72 10 4
10 22 72 10 4
11 26 75 12 4
12 26 75 12 4
13 32 89 14 4
14 32 89 14 4
15 32 89 16 4
16 32 89 16 4
17 38 100 18 4
18 38 100 18 4
20 38 100 20 4
