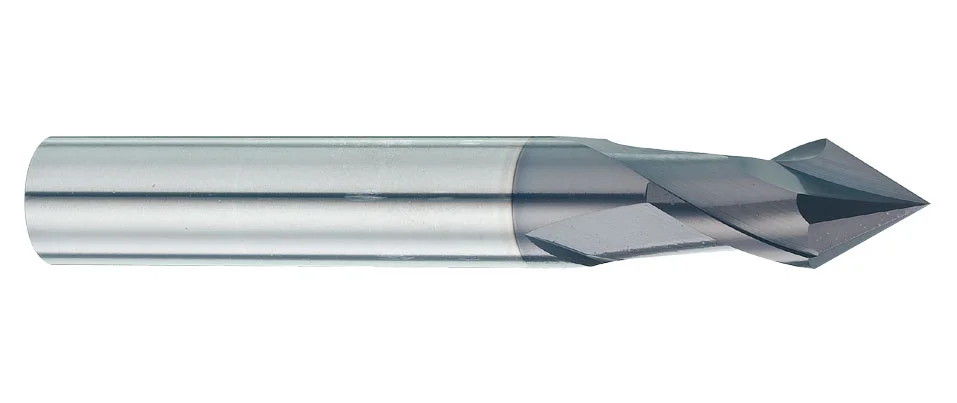

E106 End Mills For Chamfering 60°

METRIC ASIA
  • End Mill for Chamfering 60°- 2 Flutes
  • Suitable for drilling, tappering, countersinking, NC Spot drilling and frame milling.
  • MG carbide
  • 塗層種類2
  • uncoated bright
  • 螺旋角 2-2
  • 刀具刃數1-1
  • Nr5
  • 鑽尖60度
  • type of operation (1) -61頁
  • type of operation (2) -61頁
  • 機械加工方式 5-5

Steel < 48HRC

P H M K N S

Work Material

P H M K
GR1 GR2 GR3 GR4 GR5 GR8 GR9
Carbon Steel <24HRC Low-alloyed Steel <30HRC Hi-alloyed Steel 30~38HRC Hardened Steel 38~48HRC Hardened Steel Stainless Steel Cast Iron

Product Specification

Product Filter
Dc
Lc
L
d
z
Dc Lc L d z
0 -0.02 mm mm mm
1 2 38 3 2
2 4 38 3 2
3 6 50 3 2
4 8 50 4 2
5 12 50 6 2
6 12 50 6 2
8 16 60 8 2
10 20 72 10 2
12 24 75 12 2
16 32 100 16 2
20 40 100 20 2
