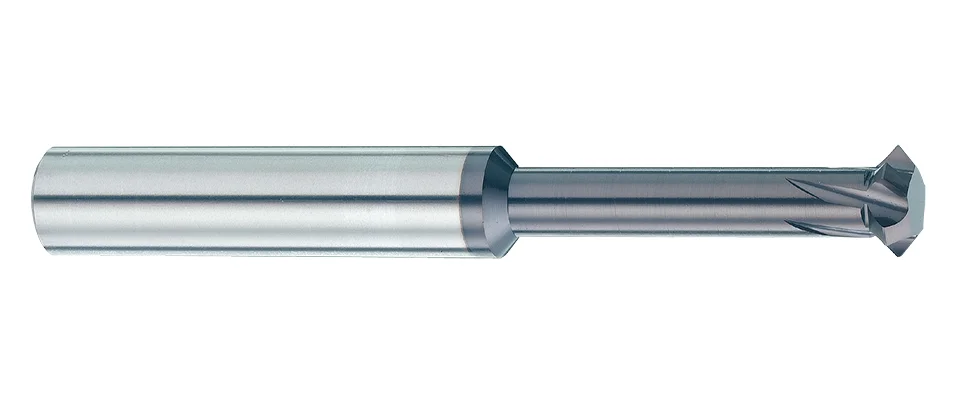

E120HX End Mills For Front and Back Chamfering 30°
METRIC
ASIA
- End Mills for Front and Back Chamfering 30°- Standard and Long Shank
- With great heat resistance, applicable in high performance processing.
- Suitable for hardened steel, stainless steel, carbon steel, non-ferrous metals and other difficult-to-cut materials.
Steel < 48HRC
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| P | H | M | K | N | S | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| GR1 | GR2 | GR3 | GR4 | GR5 | GR8 | GR9 | GR10 | GR11 | GR15 | GR17 |
| Carbon Steel | <24HRC Low-alloyed Steel | <30HRC Hi-alloyed Steel | 30~38HRC Hardened Steel | 38~48HRC Hardened Steel | Stainless Steel | Cast Iron | Aluminium | Copper | Titanium | High Temp Alloys |
Product Specification

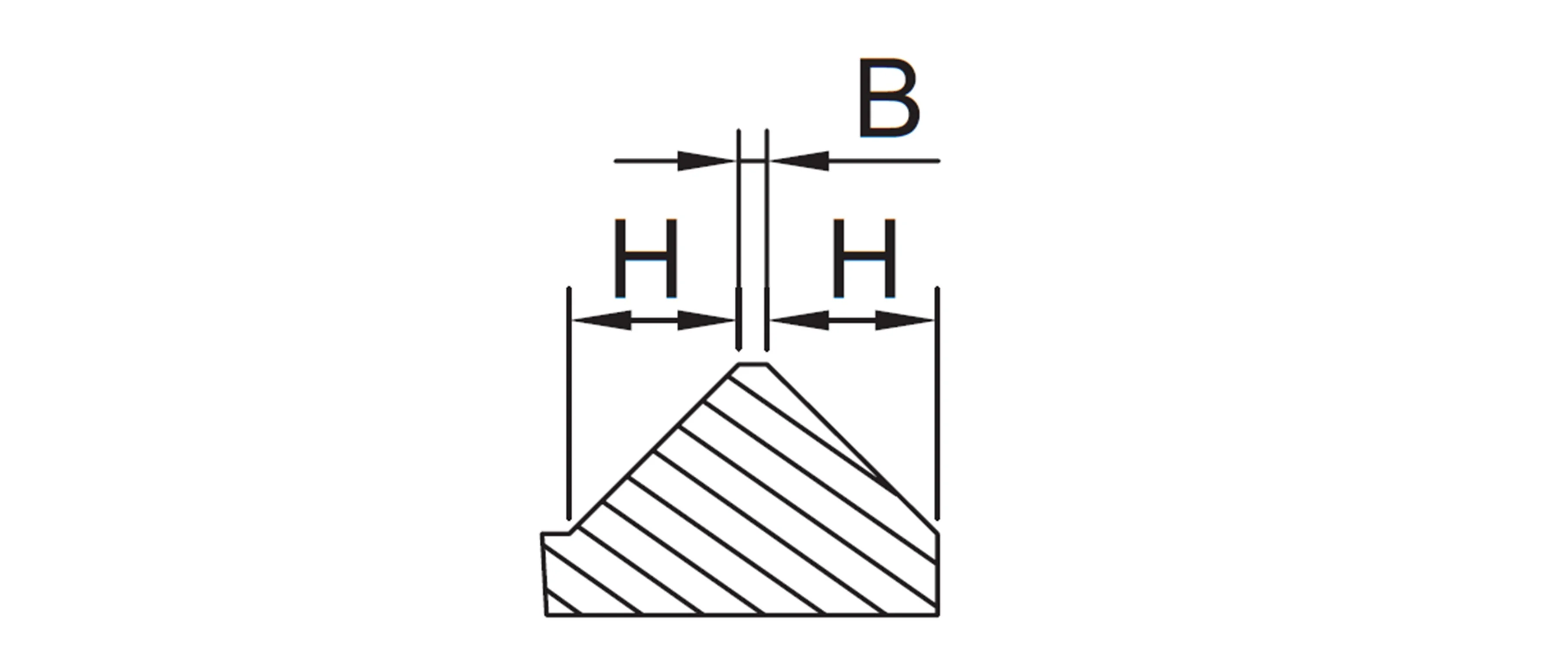

| Dc | H | B | L | d | L1 | D1 | z |
|---|---|---|---|---|---|---|---|
| 0 -0.02 | mm | mm | mm | h6 | mm | mm | t |
| 3 | 0.19 | 0.03 | 50 | 3 | 12 | 1.6 | 3 |
| 3.5 | 0.21 | 0.03 | 50 | 4 | 14 | 1.9 | 3 |
| 4 | 0.24 | 0.03 | 50 | 4 | 16 | 2.2 | 3 |
| 4.5 | 0.3 | 0.05 | 50 | 5 | 18 | 2.3 | 3 |
| 5 | 0.32 | 0.05 | 50 | 5 | 20 | 2.6 | 3 |
| 5.5 | 0.35 | 0.05 | 60 | 6 | 22 | 2.9 | 3 |
| 6 | 0.43 | 0.08 | 60 | 6 | 24 | 3.1 | 3 |
| 8 | 0.46 | 0.15 | 70 | 8 | 32 | 4.6 | 4 |
| 10 | 0.51 | 0.15 | 80 | 10 | 40 | 6.2 | 5 |
| 12 | 0.59 | 0.15 | 90 | 12 | 48 | 7.6 | 6 |
