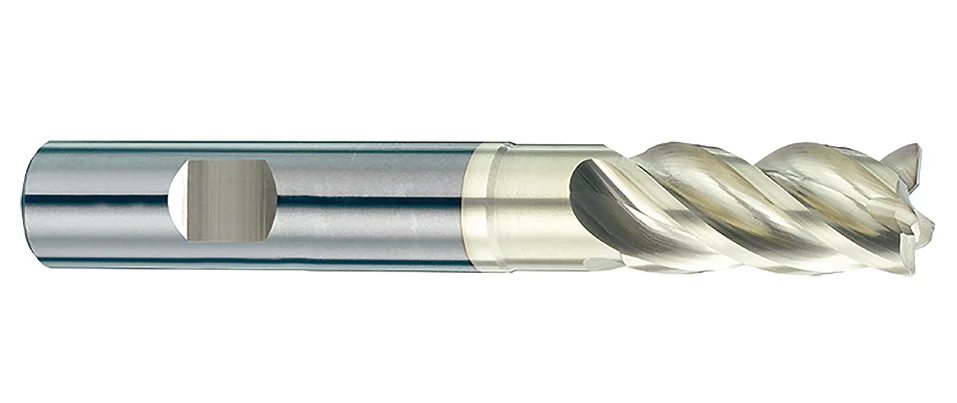

F514SX-HB Multipurpose End Mills
METRIC
DIN
- Designed with variable helix geometry, unequal flutes.
- Have good wear resistance and impact resistance.
- Good wear resistance and lubricating effect with Nano ZrN multilayer coating.
- With Y-shape special oil-feed design can make cutting fluid act more directly on cutting point to enhance chip removal rate.
- Suitable for cutting different steel below 48HRC as well as stainless steel and aluminium.
- Application from roughing to finishing cutting, drilling, ramping… in different materials.
Steel < 48HRC
P | H | M | K | N | S |
---|---|---|---|---|---|
Work Material
P | H | M | N | S | ||||||
---|---|---|---|---|---|---|---|---|---|---|
GR1 | GR2 | GR3 | GR4 | GR5 | GR8 | GR10 | GR11 | GR15 | GR16 | GR17 |
Carbon Steel | <24HRC Low-alloyed Steel | <30HRC Hi-alloyed Steel | 30~38HRC Hardened Steel | 38~48HRC Hardened Steel | Stainless Steel | Aluminium | Copper | Titanium | Nickel | High Temp Alloys |
Product Specification
Dc | Lc | L | d | L1 | D1 | 45゜ | z |
---|---|---|---|---|---|---|---|
0 -0.02 | mm | mm | h5 | mm | mm | mm | |
3 | 8 | 57 | 6 | 14 | 2.8 | 0.1 | 4 |
4 | 11 | 57 | 6 | 16 | 3.8 | 0.1 | 4 |
5 | 13 | 57 | 6 | 18 | 4.8 | 0.15 | 4 |
6 | 13 | 57 | 6 | 20 | 5.8 | 0.15 | 4 |
8 | 19 | 63 | 8 | 26 | 7.7 | 0.15 | 4 |
10 | 22 | 72 | 10 | 31 | 9.7 | 0.2 | 4 |
12 | 26 | 83 | 12 | 37 | 11.6 | 0.2 | 4 |
14 | 26 | 83 | 14 | 37 | 13.5 | 0.2 | 4 |
16 | 32 | 92 | 16 | 43 | 15.5 | 0.2 | 4 |
18 | 32 | 92 | 18 | 43 | 17.5 | 0.2 | 4 |
20 | 38 | 104 | 20 | 53 | 19.5 | 0.2 | 4 |
