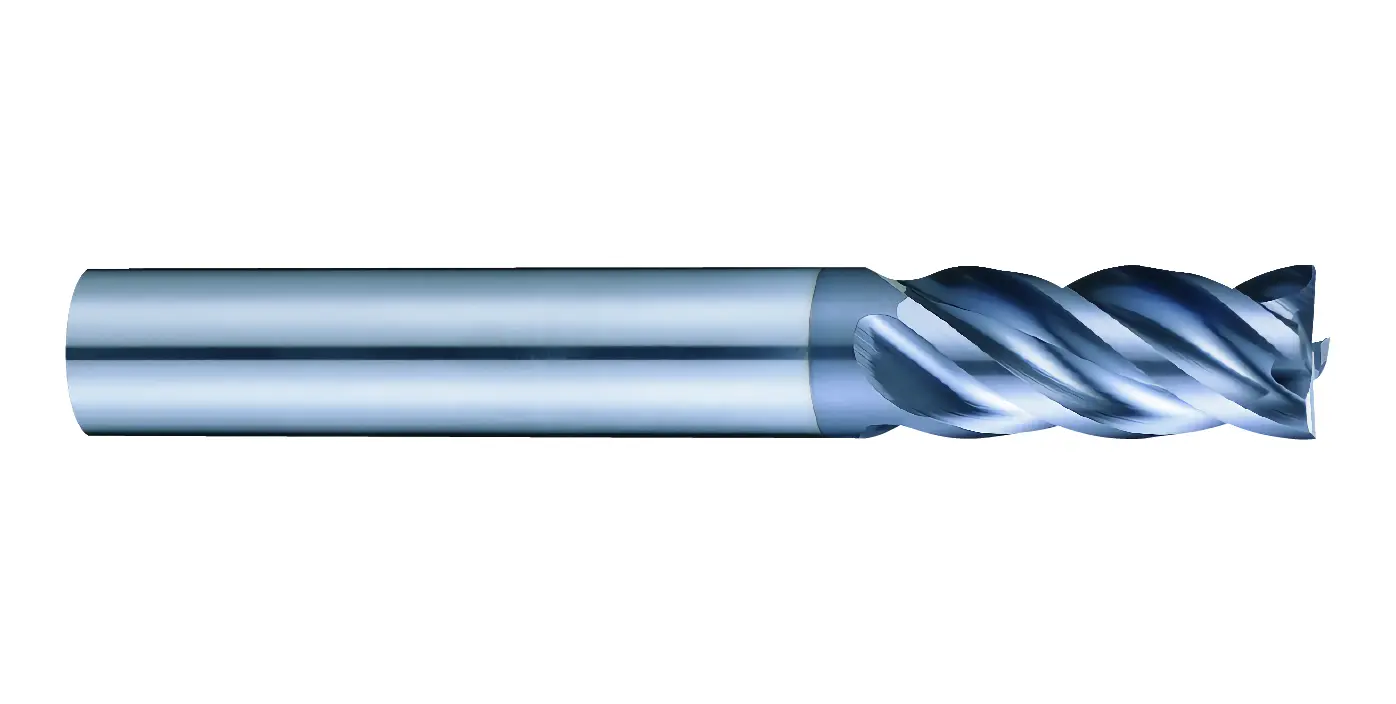

E140FX Multipurpose End Mills
METRIC
ASIA
- Multipurpose End Mills- 4 Flutes
- Effectively decrease the vibration by various helix geometry and unequal flutes designs.
- Big chip breaker is designed to reach high removal rate for various work materials.
- Obviously improve tool life with Nano multilayer coating AlTiCrN.
- Suitable for different kinds of materials cutting.
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| P | H | M | N | S | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| GR1 | GR2 | GR3 | GR4 | GR5 | GR8 | GR10 | GR11 | GR15 | GR16 | GR17 |
| Carbon Steel | <24HRC Low-alloyed Steel | <30HRC Hi-alloyed Steel | 30~38HRC Hardened Steel | 38~48HRC Hardened Steel | Stainless Steel | Aluminium | Copper | Titanium | Nickel | High Temp Alloys |
Product Specification
| Dc | Lc | L | d | z |
|---|---|---|---|---|
| 0-0.02 | mm | mm | h6 | |
| 1 | 3 | 50 | 4 | 4 |
| 1.5 | 5 | 50 | 4 | 4 |
| 2 | 6 | 50 | 4 | 4 |
| 2.5 | 8 | 50 | 4 | 4 |
| 3 | 8 | 50 | 6 | 4 |
| 4 | 11 | 50 | 6 | 4 |
| 5 | 13 | 50 | 6 | 4 |
| 6 | 16 | 50 | 6 | 4 |
| 8 | 20 | 60 | 8 | 4 |
| 10 | 22 | 72 | 10 | 4 |
| 10-25 | 25 | 75 | 12 | 4 |
| 12 | 26 | 75 | 12 | 4 |
| 10-25 | 30 | 75 | 12 | 4 |
| 16 | 38 | 100 | 16 | 4 |
| 20 | 38 | 100 | 20 | 4 |
