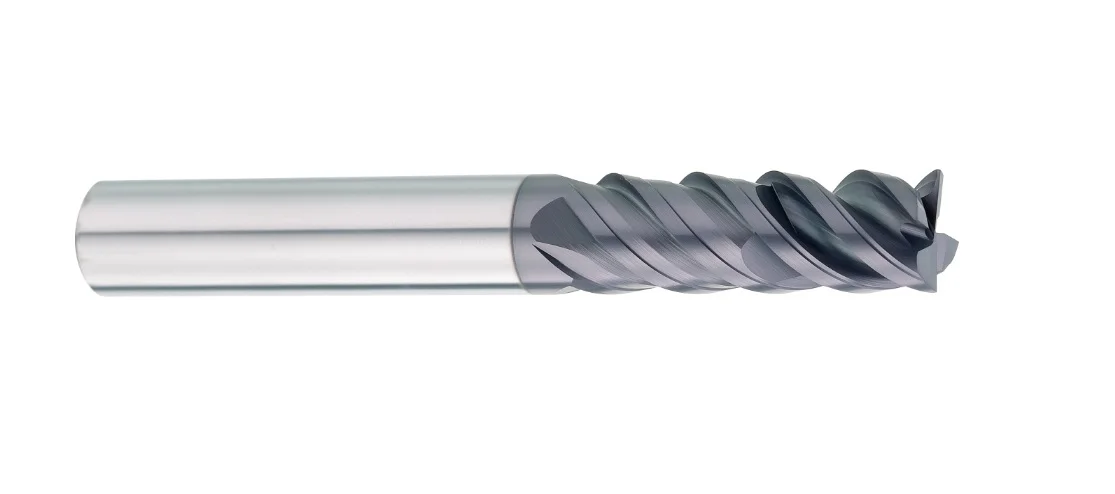

A48FX Multipurpose End Mills (Trinity)
METRIC
ASIA
- 4-flute double core design, high rigidity and chip resistance, unequal flute, high helix angle, sharp cutting edges, tip cutting edge with micro passivation protection, among other design elements, achieve a trinity tool application.
- High-speed trochoidal sidemilling application.
- High-precision surface finishing application.
- High rigidity and high removal rate end milling application.
- Using with an APC high precision anti-vibration collet chuck, become even more efficient and effective.
- The coating is Nano multilayer coating AlCrN, which caused smooth and refined surface, suitable for carbon steel, alloy steel, stainless steel, titanium alloy…etc.
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| P | H | M | K | S | |||
|---|---|---|---|---|---|---|---|
| GR1 | GR5 | GR6 | GR8 | GR9 | GR15 | GR16 | GR17 |
| Carbon Steel | 38~48HRC Hardened Steel | 48~56HRC Hardened Steel | Stainless Steel | Cast Iron | Titanium | Nickel | High Temp Alloys |
Product Specification
| Dc | Lc | L | d | z |
|---|---|---|---|---|
| 0-0.02 | mm | mm | h6 | |
| 3 | 8 | 50 | 6 | 4 |
| 4 | 11 | 50 | 6 | 4 |
| 5 | 13 | 50 | 6 | 4 |
| 6 | 16 | 50 | 6 | 4 |
| 8 | 20 | 60 | 8 | 4 |
| 10 | 25 | 75 | 10 | 4 |
| 12 | 30 | 75 | 12 | 4 |
| 16 | 40 | 100 | 16 | 4 |
| 20 | 50 | 100 | 20 | 4 |
