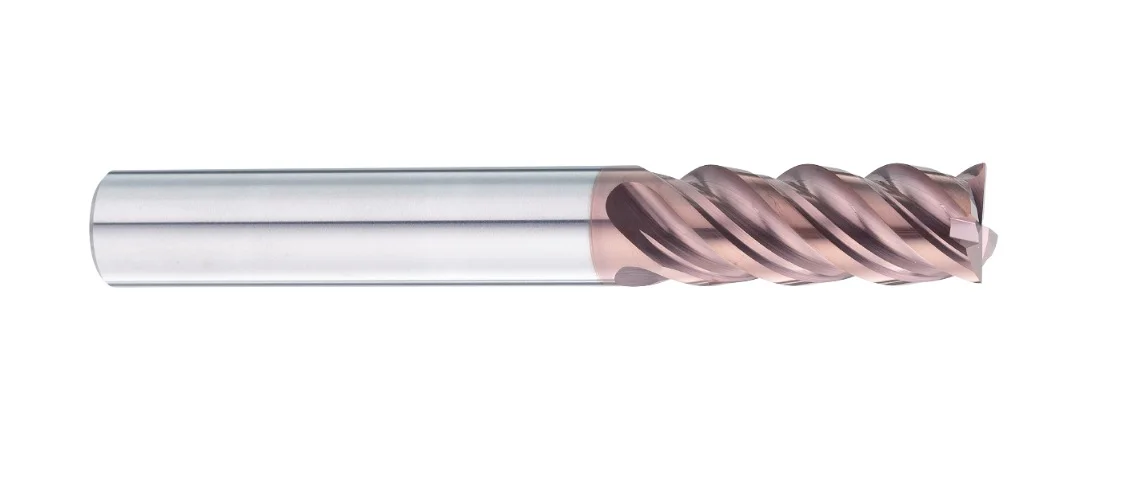

A45TX Finishing End Mills
METRIC
ASIA
- 4 flutes, round arc fluting, high rigidity, unequal flutes design and 45° helix angle design.
- Sharp cutting edge with micro corner radius which is suitable for finishing. Using with an APC high precision anti-vibration collet
- chuck, which has a clamping runout accuracy of <3μm and ensures an excellent finished surface.
- Suitable for precision machining applications of carbon steel, alloy steel, hardened steel, stainless steel, titanium alloy, nickel alloy, high temperature alloy…etc.
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| P | H | M | K | S | ||||
|---|---|---|---|---|---|---|---|---|
| GR1 | GR4 | GR5 | GR6 | GR8 | GR9 | GR15 | GR16 | GR17 |
| Carbon Steel | 30~38HRC Hardened Steel | 38~48HRC Hardened Steel | 48~56HRC Hardened Steel | Stainless Steel | Cast Iron | Titanium | Nickel | High Temp Alloys |
Product Specification
| Dc | Lc | L | d | z |
|---|---|---|---|---|
| 0-0.02 | mm | mm | h6 | |
| 3 | 8 | 50 | 6 | 4 |
| 4 | 11 | 50 | 6 | 4 |
| 5 | 13 | 50 | 6 | 4 |
| 6 | 16 | 50 | 6 | 4 |
| 8 | 20 | 60 | 8 | 4 |
| 10 | 25 | 75 | 10 | 4 |
| 12 | 30 | 75 | 12 | 4 |
| 16 | 40 | 100 | 16 | 4 |
| 20 | 50 | 100 | 20 | 4 |
