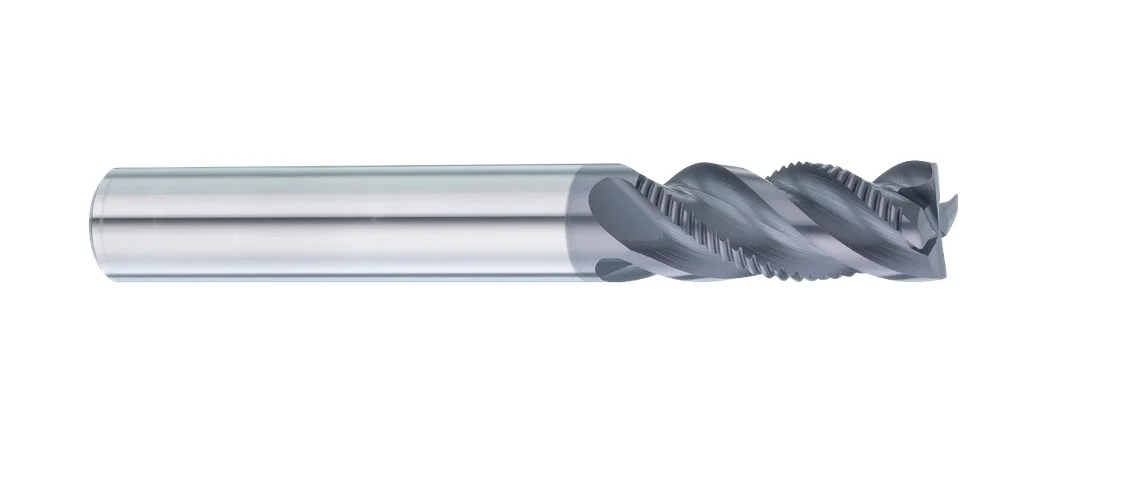

A42FX Multipurpose End Mills
METRIC
ASIA
- Multipurpose Roughing and Finishing End Mills-4 Flutes Unequal flutes design, equal helix geometry, two tooth with fine wave
- shape design, and two eccentric outer circle design.
- Sharp cutting edge with corner chamfer design. High-efficiency heavy cutting and high-speed trochoidal side-milling, which
- is compatible with APC high precision anti-vibration collet chuck, coping with various milling conditions.
- With Nano multilayer coating AlCrN, suitable for carbon steel, alloy steel, stainless steel, titanium alloy, nickel alloy, high temperature alloy…etc.
- chuck, which has a clamping runout accuracy of <3μm and ensures an excellent finished surface.
- Suitable for precision machining applications of carbon steel, alloy steel, hardened steel, stainless steel, titanium alloy, nickel alloy, high temperature alloy…etc.
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| P | H | M | K | S | |||
|---|---|---|---|---|---|---|---|
| GR1 | GR5 | GR6 | GR8 | GR9 | GR15 | GR16 | GR17 |
| Carbon Steel | 38~48HRC Hardened Steel | 48~56HRC Hardened Steel | Stainless Steel | Cast Iron | Titanium | Nickel | High Temp Alloys |
Product Specification
| Dc | Lc | L | d | C | z |
|---|---|---|---|---|---|
| 0-0.02 | mm | mm | h6 | ||
| 6 | 16 | 50 | 6 | 0.09 | 4 |
| 8 | 20 | 60 | 8 | 0.12 | 4 |
| 10 | 25 | 75 | 10 | 0.15 | 4 |
| 12 | 30 | 75 | 12 | 0.18 | 4 |
| 16 | 40 | 100 | 16 | 0.24 | 4 |
| 20 | 50 | 100 | 20 | 0.3 | 4 |
