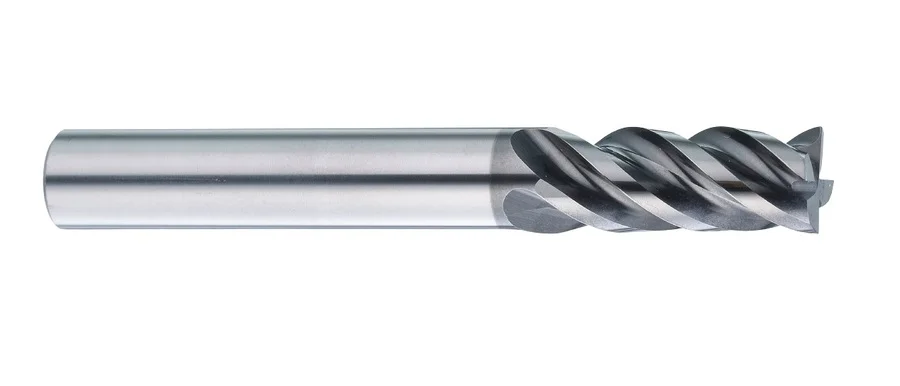

A40FX Multipurpose End Mills
METRIC
ASIA
- Multipurpose End Mills- 4 Flutes
- Effectively decrease the vibration by various helix geometry and unequal flutes designs.
- Tip cutting edge with micro passivation protection design.
- Big chip breaker is designed to reach smooth chip evacuation.
- High-efficiency heavy cutting and high-speed trochoidal sidemilling, which is compatible with APC high precision anti-vibration collet chuck, coping with various milling conditions.
- With Nano multilayer coating AlCrN, suitable for carbon steel, alloy steel, stainless steel, titanium alloy…etc.
PREV
NEXT
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| P | H | M | K | S | ||
|---|---|---|---|---|---|---|
| GR1 | GR5 | GR8 | GR9 | GR15 | GR16 | GR17 |
| Carbon Steel | 38~48HRC Hardened Steel | Stainless Steel | Cast Iron | Titanium | Nickel | High Temp Alloys |
Product Specification
| Dc | Lc | L | d | z |
|---|---|---|---|---|
| 0-0.02 | mm | mm | h6 | |
| 3 | 8 | 50 | 6 | 4 |
| 4 | 11 | 50 | 6 | 4 |
| 5 | 13 | 50 | 6 | 4 |
| 6 | 16 | 50 | 6 | 4 |
| 8 | 20 | 60 | 8 | 4 |
| 10 | 25 | 75 | 10 | 4 |
| 12 | 30 | 75 | 12 | 4 |
| 16 | 40 | 100 | 16 | 4 |
| 20 | 50 | 100 | 20 | 4 |
