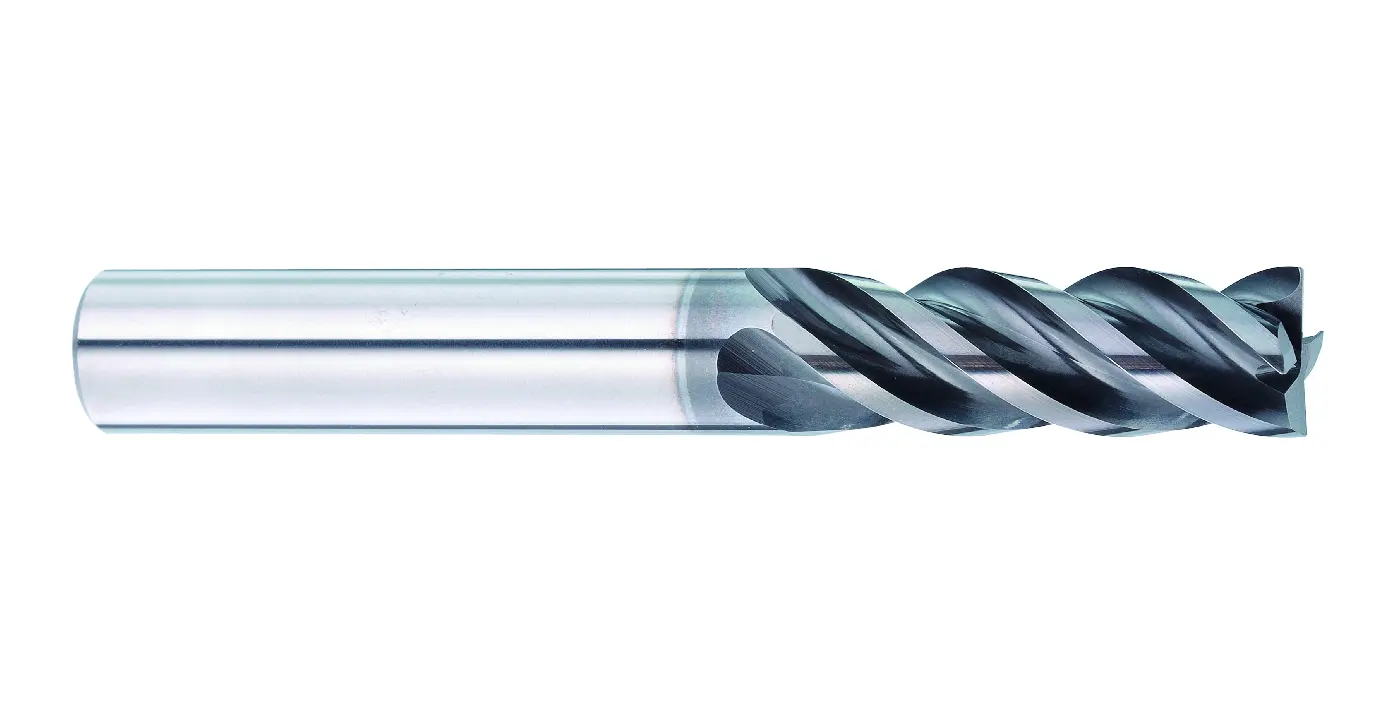

E141-2.0FX / 3.0FX Multipurpose End Mills (Chamfer Corner)
METRIC
ASIA
- Multipurpose End Mills- 4 Flutes
- Various short and long length types are selectable and protect the C-angle of the tool tip..
- Effectively decrease the vibration by various helix geometry and unequal flutes designs.
- Big chip breaker is designed to reach high removal rate for various work materials.
- Obviously improve tool life with Nano multilayer coating AlTiCrN.
- Suitable for different kinds of materials cutting.
Steel < 48HRC
P | H | M | K | N | S |
---|---|---|---|---|---|
Work Material
P | H | M | K | N | S | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|
GR1 | GR2 | GR3 | GR4 | GR5 | GR8 | GR9 | GR10 | GR11 | GR15 | GR16 | GR17 |
Carbon Steel | <24HRC Low-alloyed Steel | <30HRC Hi-alloyed Steel | 30~38HRC Hardened Steel | 38~48HRC Hardened Steel | Stainless Steel | Cast Iron | Aluminium | Copper | Titanium | Nickel | High Temp Alloys |
Product Specification
Code No. | Dc | Lc | L | d | C | z |
---|---|---|---|---|---|---|
E141-2.0FX | 0-0.02 | mm | mm | h6 | mm | |
1 | 2 | 50 | 4 | 0.01 | 4 | |
1.5 | 3 | 50 | 4 | 0.015 | 4 | |
2 | 4 | 50 | 4 | 0.02 | 4 | |
2.5 | 5 | 50 | 4 | 0.025 | 4 | |
3 | 6 | 50 | 6 | 0.03 | 4 | |
3 | 6 | 50 | 6 | 0.075 | 4 | |
4 | 8 | 50 | 6 | 0.04 | 4 | |
4 | 8 | 50 | 6 | 0.1 | 4 | |
5 | 10 | 50 | 6 | 0.05 | 4 | |
5 | 10 | 50 | 6 | 0.125 | 4 | |
6 | 12 | 50 | 6 | 0.06 | 4 | |
6 | 12 | 50 | 6 | 0.15 | 4 | |
8 | 16 | 60 | 8 | 0.08 | 4 | |
8 | 16 | 60 | 8 | 0.2 | 4 | |
10 | 20 | 72 | 10 | 0.1 | 4 | |
10 | 20 | 72 | 10 | 0.25 | 4 | |
12 | 24 | 75 | 12 | 0.12 | 4 | |
12 | 24 | 75 | 12 | 0.3 | 4 | |
16 | 32 | 100 | 16 | 0.16 | 4 | |
16 | 32 | 100 | 16 | 0.4 | 4 | |
20 | 40 | 100 | 20 | 0.2 | 4 | |
20 | 40 | 100 | 20 | 0.5 | 4 | |
E141-3.0FX | 3 | 9 | 50 | 6 | 0.03 | 4 |
4 | 12 | 50 | 6 | 0.04 | 4 | |
5 | 15 | 50 | 6 | 0.05 | 4 | |
6 | 18 | 50 | 6 | 0.06 | 4 | |
8 | 24 | 65 | 8 | 0.08 | 4 | |
10 | 30 | 75 | 10 | 0.1 | 4 | |
12 | 36 | 80 | 12 | 0.12 | 4 | |
16 | 48 | 100 | 16 | 0.16 | 4 | |
20 | 60 | 120 | 20 | 0.2 | 4 |
