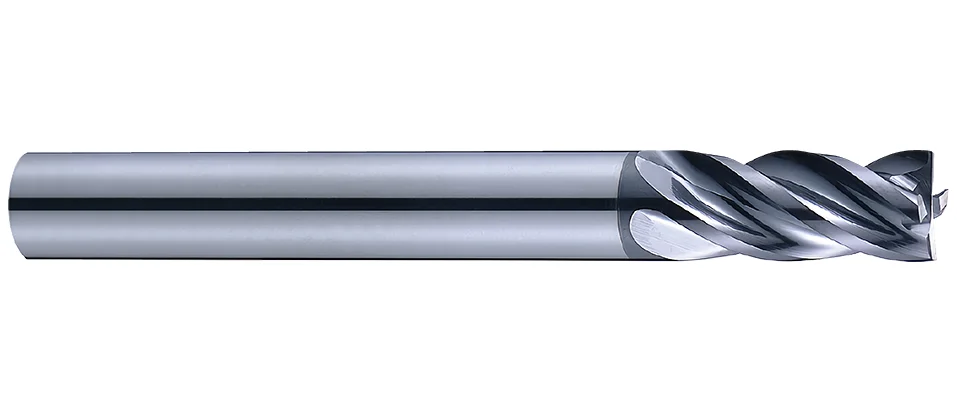

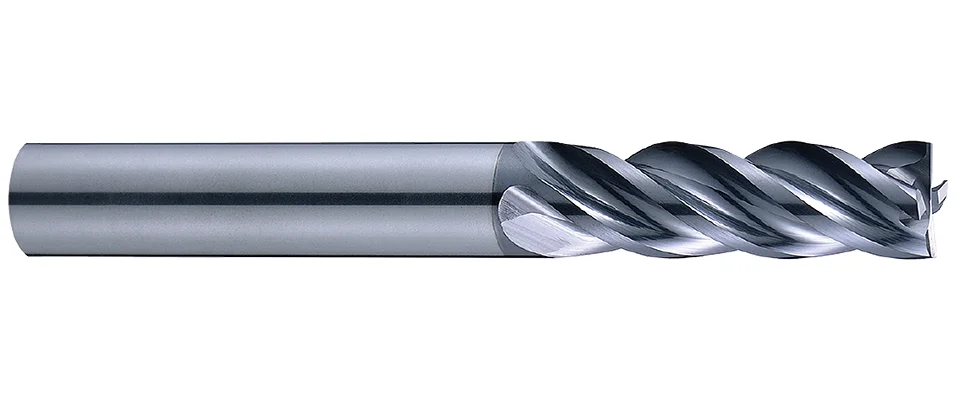

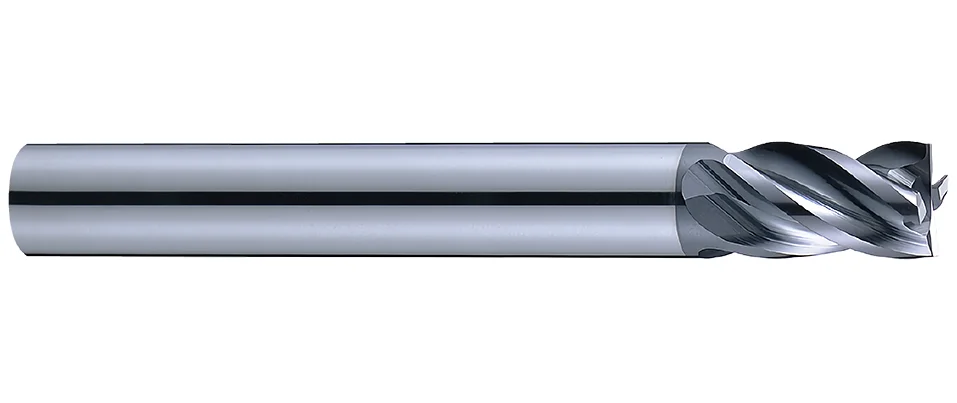

E141-1.5HX / 2.0HX / 3.0HX Multipurpose End Mills

METRIC ASIA
  • Multipurpose End Mills- 4 Flutes
  • Various short and long length types are selectable.
  • Effectively decrease the vibration by various helix geometry and unequal flutes designs.
  • Big chip breaker is designed to reach high removal rate for various work materials.
  • Obviously improve tool life with Nano multilayer coating AlTiCrN.
  • Suitable for different kinds of materials cutting.
  • MG carbide
  • ALTiCrNHX
  • 3841
  • Blade4 New
  • Nr5
  • 90
  • 1
  • 2
  • 3
  • 4
Inquiry Download
PREV NEXT

Steel < 48HRC

P H M K N S

Work Material

P H M K N S
GR1 GR2 GR3 GR4 GR5 GR8 GR9 GR10 GR11 GR15 GR16 GR17
Carbon Steel <24HRC Low-alloyed Steel <30HRC Hi-alloyed Steel 30~38HRC Hardened Steel 38~48HRC Hardened Steel Stainless Steel Cast Iron Aluminium Copper Titanium Nickel High Temp Alloys

Product Specification

Product Filter
Dc
Lc
L
d
z
Code No. Dc Lc L d z
0-0.02 mm mm h6
E141-1.5HX 1 1.5 50 4 4
1.5 2.3 50 4 4
2 3 50 4 4
2.5 3.8 50 4 4
3 4.5 50 6 4
3.5 5.3 50 6 4
4 6 50 6 4
4.5 6.8 50 6 4
5 7.5 50 6 4
5.5 8.3 50 6 4
6 9 50 6 4
8 12 65 8 4
10 15 75 10 4
12 18 80 12 4
16 24 100 16 4
20 30 120 20 4
E141-2.0HX 1 2 50 4 4
1.5 3 50 4 4
2 4 50 4 4
2.5 5 50 4 4
3 6 50 6 4
3.5 7 50 6 4
4 8 50 6 4
4.5 9 50 6 4
5 10 50 6 4
5.5 11 50 6 4
6 12 50 6 4
8 16 65 8 4
10 20 75 10 4
12 24 80 12 4
16 32 100 16 4
20 40 120 20 4
E141-3.0HX 1 3 50 4 4
1.5 4.5 50 4 4
2 6 50 4 4
2.5 7.5 50 4 4
3 9 50 6 4
3.5 10.5 50 6 4
4 12 50 6 4
4.5 13.5 50 6 4
5 15 50 6 4
5.5 16.5 50 6 4
6 18 50 6 4
7 21 65 8 4
8 24 65 8 4
9 27 75 10 4
10 30 75 10 4
11 33 80 12 4
12 36 80 12 4
13 39 100 16 4
14 42 100 16 4
15 45 100 16 4
16 48 100 16 4
17 51 120 20 4
18 54 120 20 4
20 60 120 20 4
25 75 150 25 4
