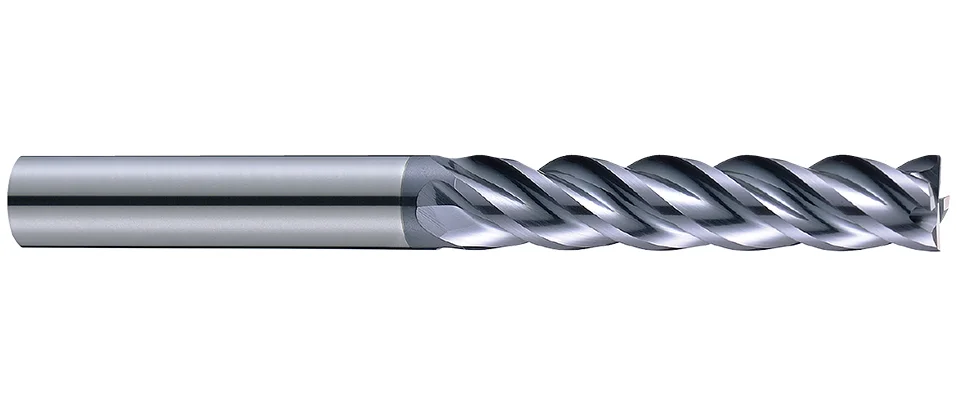

E141-4.0HX

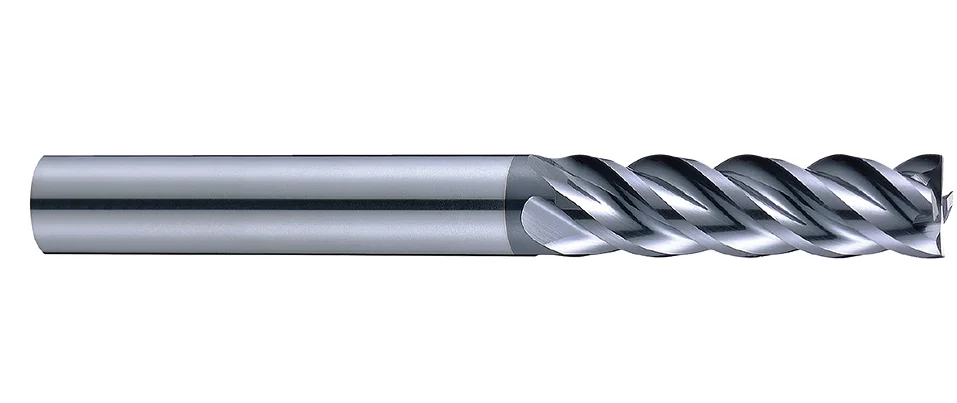

E141-5.0HX
E141-4.0HX
E141-5.0HX

E141-4.0HX / 5.0HX Multipurpose End Mills

METRIC ASIA
  • Multipurpose End Mills- 4 Flutes
  • Various short and long length types are selectable.
  • Effectively decrease the vibration by various helix geometry and unequal flutes designs.
  • Big chip breaker is designed to reach high removal rate for various work materials.
  • Obviously improve tool life with Nano multilayer coating AlTiCrN.
  • Suitable for different kinds of materials cutting.
  • MG carbide
  • ALTiCrNHX
  • 3841
  • Blade4 New
  • Nr5
  • 90
  • 1
  • 2
  • 3
  • 4
Inquiry Download
PREV NEXT

Steel < 48HRC

P H M K N S

Work Material

P H M K N S
GR1 GR2 GR3 GR4 GR5 GR8 GR9 GR10 GR11 GR15 GR16 GR17
Carbon Steel <24HRC Low-alloyed Steel <30HRC Hi-alloyed Steel 30~38HRC Hardened Steel 38~48HRC Hardened Steel Stainless Steel Cast Iron Aluminium Copper Titanium Nickel High Temp Alloys

Product Specification

Product Filter
Dc
Lc
L
d
z
Code No. Dc Lc L d z
0-0.02 mm mm h6
E141-4.0HX 1 4 50 4 4
1.5 6 50 4 4
2 8 50 4 4
2.5 10 50 4 4
3 12 50 6 4
3.5 14 50 6 4
4 16 55 6 4
4.5 18 55 6 4
5 20 60 6 4
5.5 22 65 6 4
6 24 65 6 4
8 32 90 8 4
10 40 100 10 4
12 48 110 12 4
16 64 140 16 4
20 80 160 20 4
E141-5.0HX 1 5 50 4 4
1.5 7.5 50 4 4
2 10 50 4 4
2.5 12.5 50 4 4
3 15 55 6 4
3.5 17.5 60 6 4
4 20 60 6 4
4.5 22.5 65 6 4
5 25 65 6 4
5.5 27.5 75 6 4
6 30 75 6 4
8 40 90 8 4
10 50 100 10 4
12 60 110 12 4
16 80 160 16 4
20 100 200 20 4
