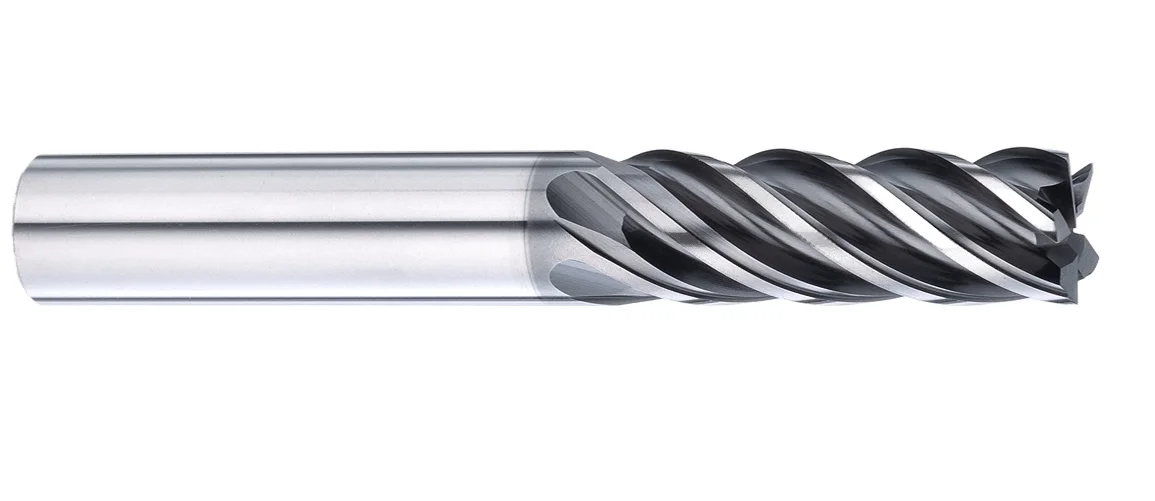

E225FX End Mills for Steel and Difficult To Cut Materials
METRIC
ASIA
- End Mills for Steel and Difficult To Cut Materials-5 Flutes
- Unequal flutes design and high rigidity.
- Sharp cutting edge with micro corner radius design. High-speed trochoidal side-milling, which is compatible with APC high
- precision anti-vibration collet chuck, coping with various milling conditions.
- Suitable for steel, stainless steel, titanium alloy, nickel alloy, high temperature alloy…etc.
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| P | H | M | K | S | |||
|---|---|---|---|---|---|---|---|
| GR1 | GR5 | GR6 | GR8 | GR9 | GR15 | GR16 | GR17 |
| Carbon Steel | 38~48HRC Hardened Steel | 48~56HRC Hardened Steel | Stainless Steel | Cast Iron | Titanium | Nickel | High Temp Alloys |
Product Specification
| Dc | Lc | L | d | z |
|---|---|---|---|---|
| 0-0.02 | mm | mm | h6 | |
| 3 | 9 | 50 | 6 | 5 |
| 4 | 12 | 50 | 6 | 5 |
| 5 | 15 | 50 | 6 | 5 |
| 6 | 18 | 50 | 6 | 5 |
| 8 | 24 | 60 | 8 | 5 |
| 10 | 30 | 75 | 10 | 5 |
| 12 | 36 | 75 | 12 | 5 |
| 16 | 48 | 100 | 16 | 5 |
| 20 | 50 | 100 | 20 | 5 |
