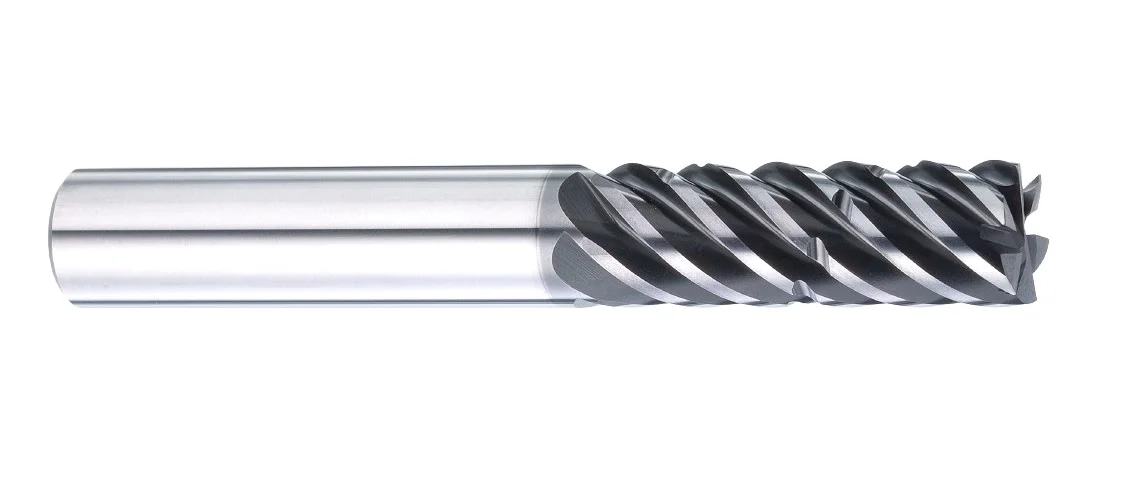

E226FX End Mills for Steel and Difficult To Cut Materials (Chipbreaker)

METRIC ASIA
  • End Mills for Steel and Difficult To Cut Materials-6 Flutes
  • Unequal flutes design and high rigidity.
  • Sharp cutting edge with micro corner radius design. High-speed trochoidal side-milling, which is compatible with APC high
  • precision anti-vibration collet chuck, coping with various milling conditions.
  • Suitable for steel, stainless steel, titanium alloy, nickel alloy, high temperature alloy…etc.
  • MG carbide
  • 1_1
  • 1-3
  • N6Z
  • Nr5
  • 90
  • 2
  • 機械加工方式 4-5
  • 機械加工方式 1-1
  • MAT
Inquiry Download
PREV NEXT

P H M K N S

Work Material

P H M K S
GR1 GR5 GR6 GR8 GR9 GR15 GR16 GR17
Carbon Steel 38~48HRC Hardened Steel 48~56HRC Hardened Steel Stainless Steel Cast Iron Titanium Nickel High Temp Alloys

Product Specification

Product Filter
Dc
Cutting Diameter
  • 3
  • 4
  • 5
  • 6
  • 8
  • 10
  • 12
  • 16
  • 20
Lc
Length of Cutting
  • 9
  • 12
  • 15
  • 18
  • 24
  • 30
  • 36
  • 48
  • 50
L
Overall Length
  • 50
  • 60
  • 75
  • 100
d
Shank Diameter
  • 6
  • 8
  • 10
  • 12
  • 16
  • 20
z
Number of Flute
  • 6
Dc Lc L d z
0-0.02 mm mm h6
3 9 50 6 6
4 12 50 6 6
5 15 50 6 6
6 18 50 6 6
8 24 60 8 6
10 30 75 10 6
12 36 75 12 6
16 48 100 16 6
20 50 100 20 6
