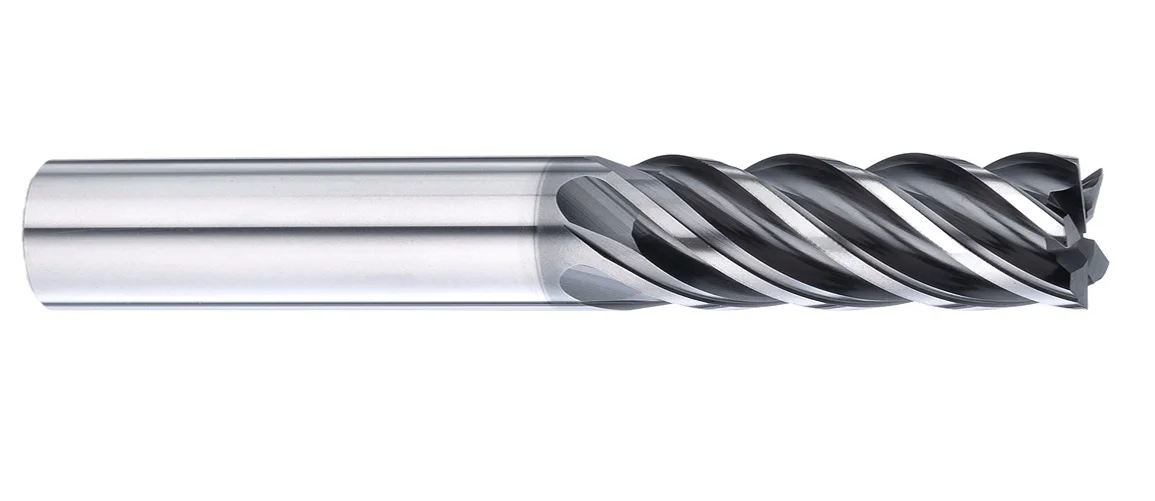

E227-3.0FX End Mills With Corner Radius For Steel and Difficult To Cut Materials

METRIC ASIA
  • 4 Flutes designed with double core diameter, high rigidity, unequal flute and high helix angle.
  • Suitable for high speed trochoidal side-milling, which is compatible with APC high precision antivibration collet chuck.
  • Sharp cutting edge with radius is for multi-purpose cutting of materials such as carbon steel, alloy steel, stainless steel, cast iron, titanium alloy, nickel alloy, high temperature alloy…etc.
  • MG carbide
  • 1_1
  • RA48
  • 未命名
  • N 8 度
  • 切削邊緣4
  • 7
  • 3
  • 5
  • MAT
Inquiry Download
PREV NEXT

P H M K N S

Work Material

P H M K S
GR1 GR5 GR6 GR8 GR9 GR15 GR16 GR17
Carbon Steel 38~48HRC Hardened Steel 48~56HRC Hardened Steel Stainless Steel Cast Iron Titanium Nickel High Temp Alloys

Product Specification

Product Filter
Dc
R
Lc
L
d
z
Dc R Lc L d z
0-0.02 ±0.01 mm mm h6
3 0.2 9 50 6 4
3 0.5 9 50 6 4
4 0.2 12 50 6 4
4 0.5 12 50 6 4
5 0.2 15 50 6 4
5 0.5 15 50 6 4
6 0.2 18 50 6 4
6 0.3 18 50 6 4
6 0.5 18 50 6 4
6 1 18 50 6 4
8 0.3 24 60 8 4
8 0.5 24 60 8 4
6 1 24 50 6 4
8 1.5 24 60 8 4
8 2 24 60 8 4
10 0.3 30 75 10 4
10 0.5 30 75 10 4
10 1 30 75 10 4
10 1.5 30 75 10 4
10 2 30 75 10 4
10 3 30 75 10 4
12 0.3 36 75 12 4
12 0.5 36 75 12 4
12 1 36 75 12 4
12 1.5 36 75 12 4
12 2 36 75 12 4
12 3 36 75 12 4
16 0.5 48 100 16 4
16 1 48 100 16 4
16 1.5 48 100 16 4
16 2 48 100 16 4
16 3 48 100 16 4
16 4 48 100 16 4
