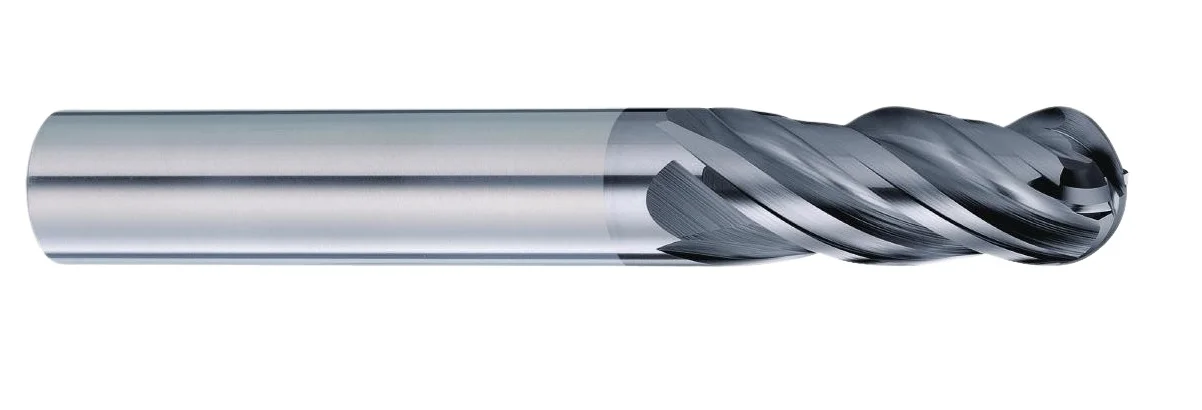

B220FX Ball Nose End Mills For Steel and Difficult To Cut Materials
METRIC
ASIA
- Various Helix Geometry Ball Nose End Mills-4 Flutes
- High rigidity and unequal flute. Using with an APC high precision anti-vibration collet chuck.
- Sharp cutting edge with micro passivation is for carbon steel, stainless steel, titanium alloy, nickel alloy, high temperature alloy…etc.
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| P | H | M | S | |||
|---|---|---|---|---|---|---|
| GR1 | GR5 | GR6 | GR8 | GR15 | GR16 | GR17 |
| Carbon Steel | 38~48HRC Hardened Steel | 48~56HRC Hardened Steel | Stainless Steel | Titanium | Nickel | High Temp Alloys |
Product Specification
| Dc | R | Lc | L | d | z |
|---|---|---|---|---|---|
| 0-0.02 | ±0.01 | mm | mm | h6 | |
| 6 | 3 | 15 | 50 | 6 | 4 |
| 8 | 4 | 20 | 60 | 8 | 4 |
| 10 | 5 | 25 | 75 | 10 | 4 |
| 12 | 6 | 30 | 75 | 12 | 4 |
| 16 | 8 | 40 | 100 | 16 | 4 |
| 20 | 10 | 50 | 100 | 20 | 4 |
