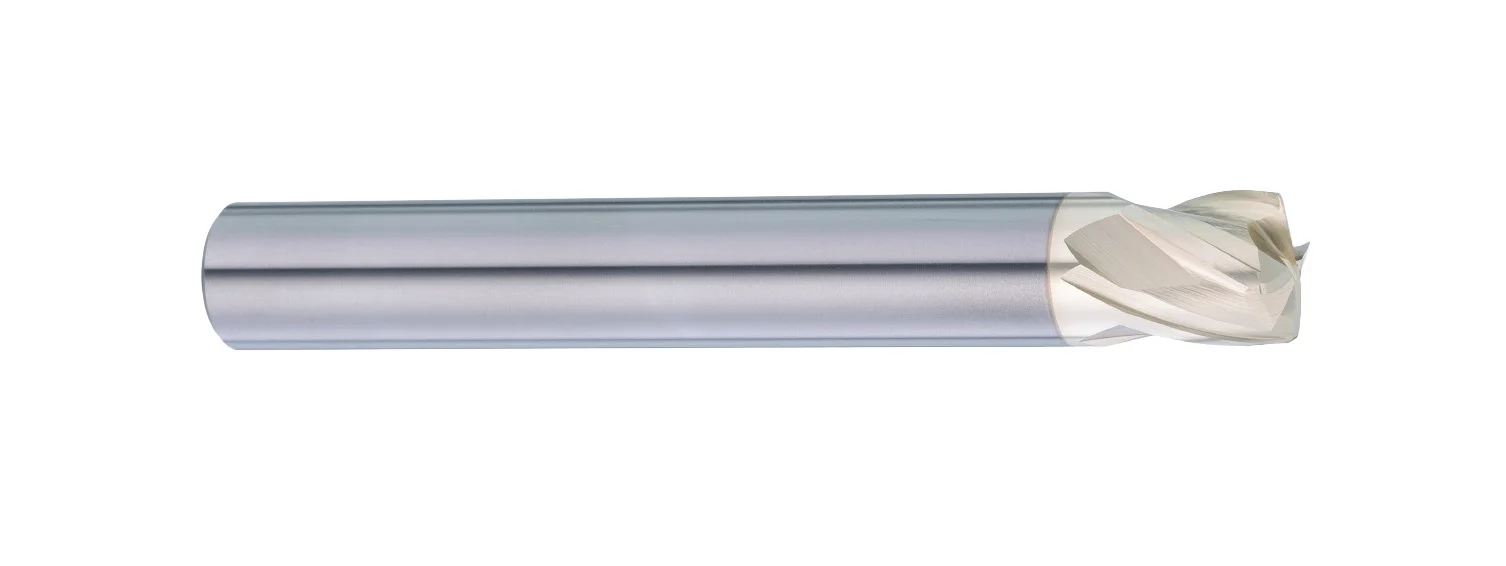

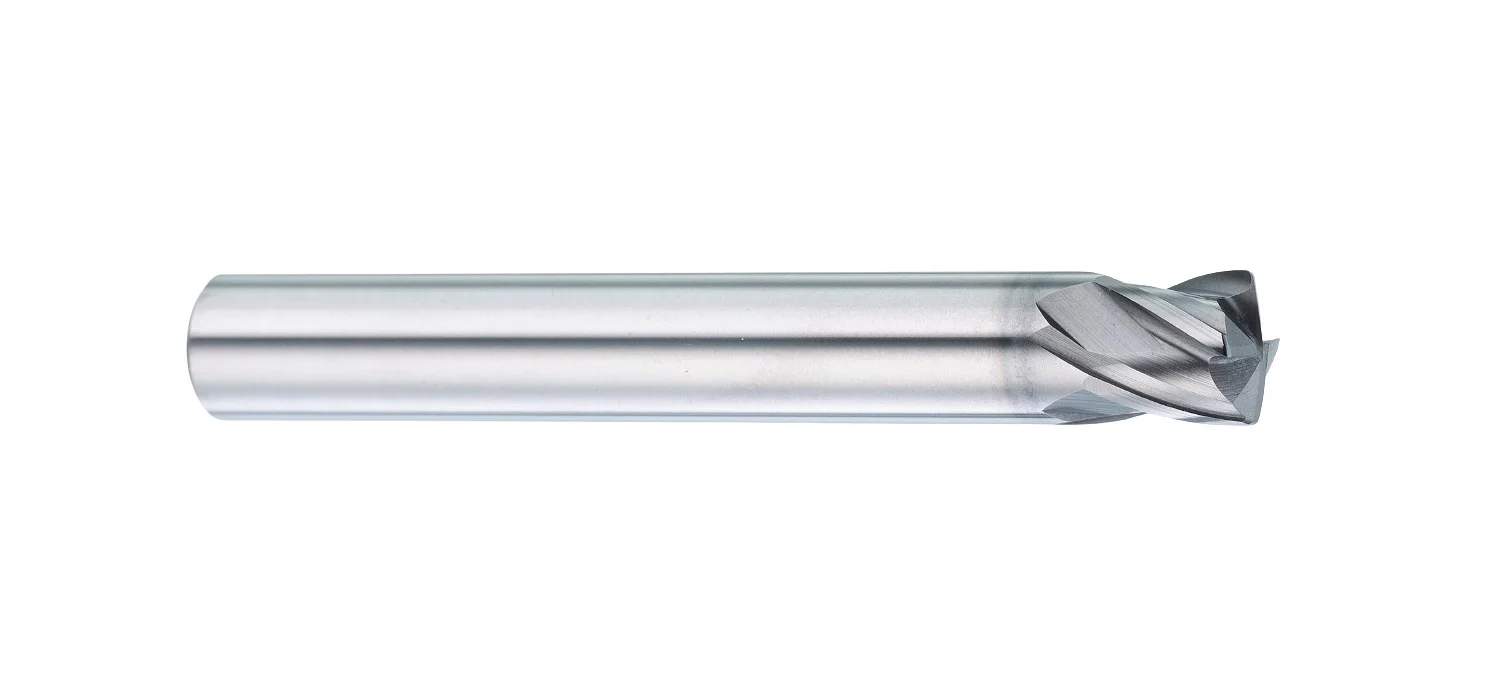

Q139FX / Q139SX 5-Axis End Mills (Lens Form)
METRIC
ASIA
- The 4-flute convex mirror shape with a specially defined profile significantly reduces machining paths and improves surface finish.
- The 4-flute geometry is specially designed for floor finish surface machining of general steel, stainless steel, high temperature resistant materials and other metal materials.
- AlCrN coating has high hardness and lubricity and is suitable for cutting steel, stainless steel, and other metal materials.
- AlTiXZrN coating has high lubricity and anti-stickiness, suitable for cutting nickel alloy, high temperature alloy, stainless steel, titanium alloy and other difficultto-cut materials.
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| P | H | M | S | |||
|---|---|---|---|---|---|---|
| GR1 | GR5 | GR6 | GR8 | GR15 | GR16 | GR17 |
| Carbon Steel | 38~48HRC Hardened Steel | 48~56HRC Hardened Steel | Stainless Steel | Titanium | Nickel | High Temp Alloys |
Product Specification
| Code No. | Dc | Lc | L | d | z |
|---|---|---|---|---|---|
| mm | mm | h6 | |||
| Q139FX | 10 | 10 | 72 | 10 | 4 |
| 12 | 12 | 75 | 12 | 4 | |
| 16 | 16 | 100 | 16 | 4 | |
| 20 | 20 | 100 | 20 | 4 | |
| Q139SX | 10 | 10 | 72 | 10 | 4 |
| 12 | 12 | 75 | 12 | 4 | |
| 16 | 16 | 100 | 16 | 4 | |
| 20 | 20 | 100 | 20 | 4 |
