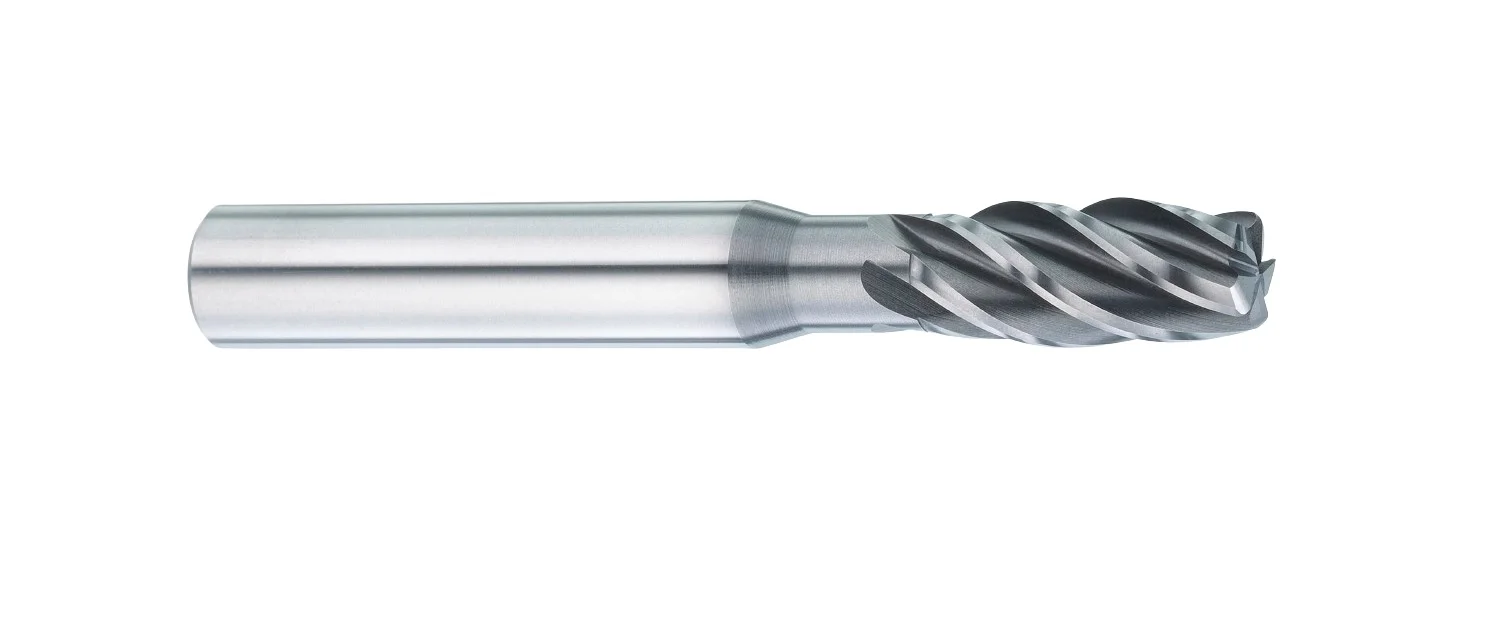

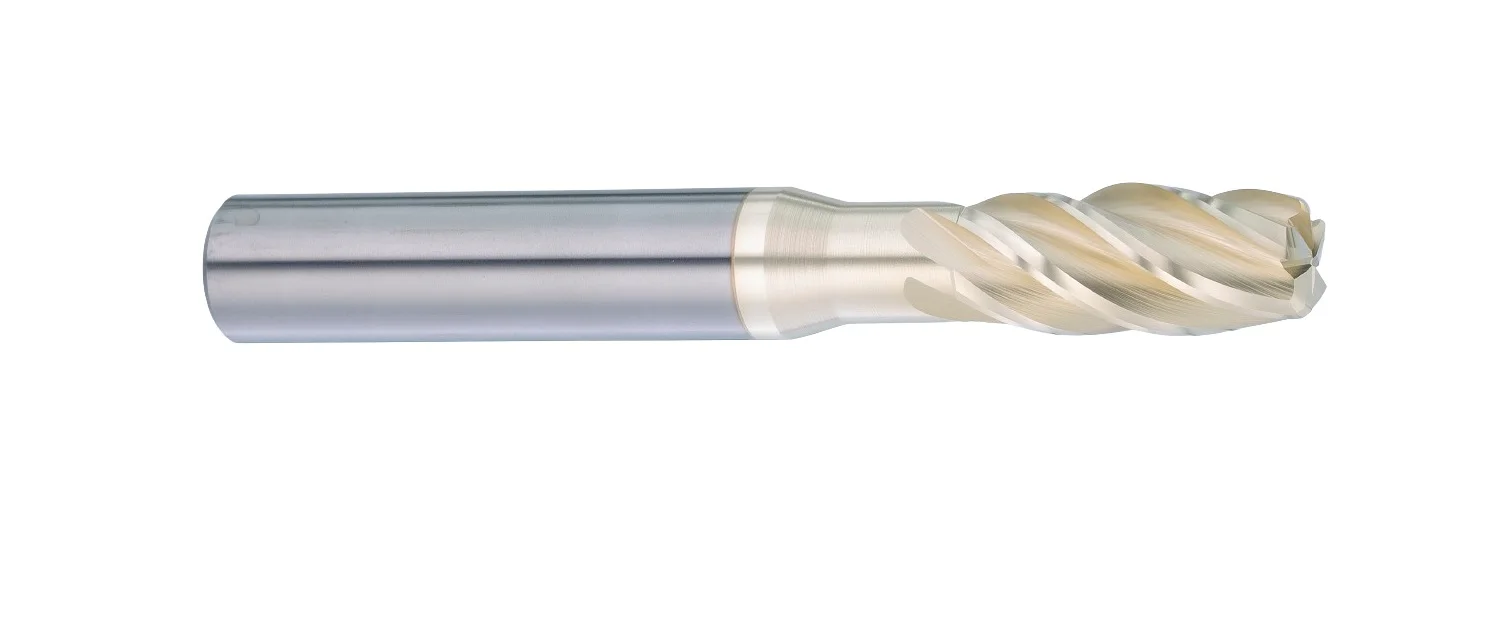

Q135FX / Q135SX 5-Axis End Mills (Barrel Form)
METRIC
ASIA
- Specialized contours that significantly reduce cycle times and greatly improve surface finish.
- Barrel form with a tangential radius for machining in tight spaces.
- 5-flute unequal cutting geometry designed for semi-finishing and finishing of stainless steel, hightemperature alloys, and more.
- AlCrN coating has high hardness and lubricity, suitable for cutting steel, stainless steel, and other metal materials.
- AlTiXZrN coating has high lubricity and anti-stickiness, suitable for cutting nickel alloy, high temperature alloy, stainless steel, titanium alloy and other difficultto-cut materials.
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| P | H | M | S | |||
|---|---|---|---|---|---|---|
| GR1 | GR5 | GR6 | GR8 | GR15 | GR16 | GR17 |
| Carbon Steel | 38~48HRC Hardened Steel | 48~56HRC Hardened Steel | Stainless Steel | Titanium | Nickel | High Temp Alloys |
Product Specification
| Code No. | Dc | Lc | L | d | L1 | D1 | z |
|---|---|---|---|---|---|---|---|
| mm | mm | h6 | mm | mm | |||
| Q135FX | 10 | 22.73 | 72 | 10 | 30 | 8 | 5 |
| 12 | 29.31 | 75 | 12 | 36 | 10 | 5 | |
| 16 | 40.7 | 100 | 16 | 48 | 12 | 5 | |
| Q135SX | 10 | 22.73 | 72 | 10 | 30 | 8 | 5 |
| 12 | 29.31 | 75 | 12 | 36 | 10 | 5 | |
| 16 | 40.7 | 100 | 16 | 48 | 12 | 5 |
