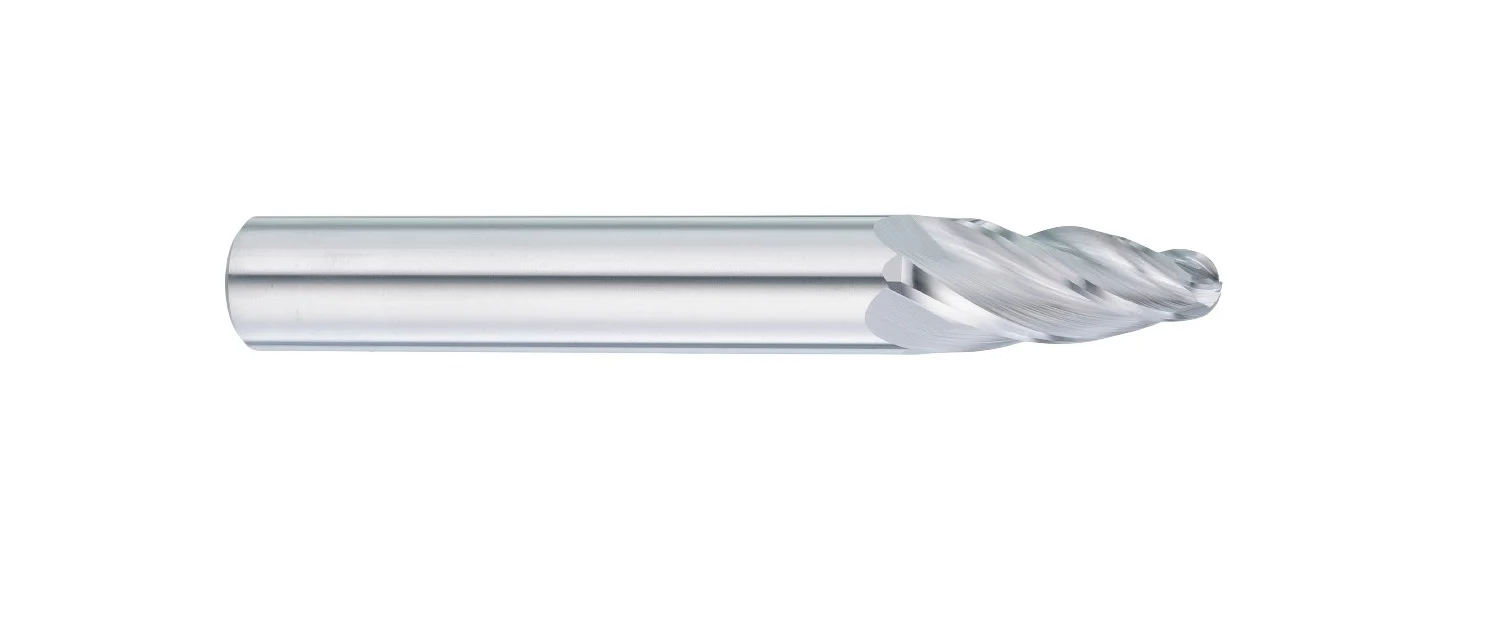

Q146 / Q146DX 5-Axis End Mills (Oval Form)
METRIC
ASIA
- Specialized contours that significantly reduce cycle times and greatly improve surface finish.
- Oval form with two tangential radii and small angles for machining in tight spaces.
- 4-flute geometry designed for semi-finishing and finishing of aluminum alloy.
- DLC coating with extremely wearresistant DLC diamond-like coating improves surface lubricity and wear resistance for aluminum alloy...etc.
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| N |
|---|
| GR10 |
| Aluminium |
Product Specification
| Code No. | R | Lc | L | d | z |
|---|---|---|---|---|---|
| mm | mm | mm | h6 | ||
| Q146 | 2.5 | 22.03 | 72 | 10 | 4 |
| 3 | 26.43 | 75 | 12 | 4 | |
| 4 | 35.24 | 100 | 16 | 4 | |
| 5 | 44.05 | 100 | 20 | 4 | |
| Q146DX | 2.5 | 22.03 | 72 | 10 | 4 |
| 3 | 26.43 | 75 | 12 | 4 | |
| 4 | 35.24 | 100 | 16 | 4 | |
| 5 | 44.05 | 100 | 20 | 4 |
