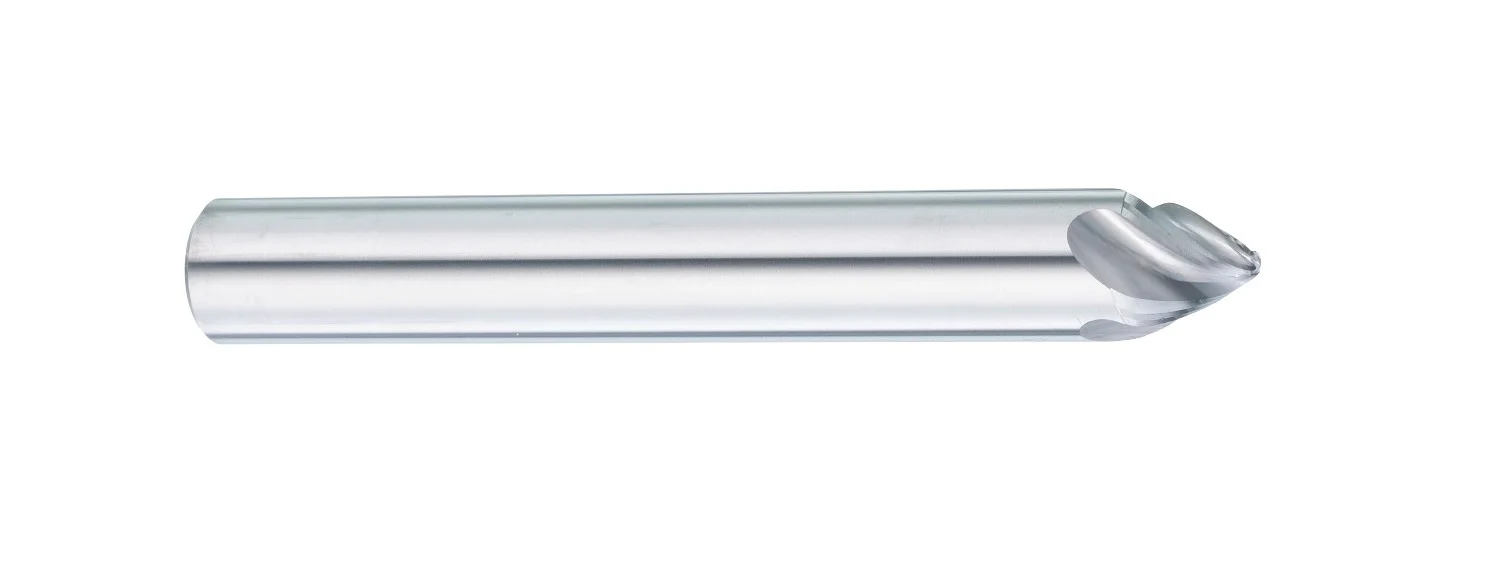

Q148 / Q148DX 5-Axis End Mills (Taper Form)

METRIC ASIA
  • Specialized contours are defined to significantly reduce cycle times and greatly improve surface finish.
  • Taper form with three tangential radii and available in a variety of angles to achieve the best performance and optimum clearance for any workpiece angle.
  • The 4-flute geometry is designed for finishing aluminum alloy on multi-axis equipment.
  • DLC coating with extremely wear-resistant DLC diamondlike coating enhances surface lubricity and wear resistance for aluminum alloy...etc.
  • MG carbide
  • 塗層種類7
  • 螺旋角 2-2
  • 刀具刃數3-5
  • Hr12
  • 切削邊緣2
  • 2024-12-25_110618
Inquiry Download
PREV NEXT

P H M K N S

Work Material

N
GR10
Aluminium

Product Specification

Product Filter
Lc
L
d
z
Code No. Lc L d 45゜ z
mm mm h6 A゜
Q148 15.55 72 10 15 4
18.49 75 12 15 4
24.66 100 16 15 4
30.82 100 20 15 4
15.55 72 10 15 4
18.49 75 12 15 4
24.66 100 16 15 4
30.82 100 20 15 4
8.13 72 10 30 4
9.85 75 12 30 4
12.93 100 16 30 4
16.16 100 20 30 4
8.13 72 10 30 4
9.85 75 12 30 4
12.93 100 16 30 4
16.16 100 20 30 4
5 72 10 45 4
6 75 12 45 4
8 100 16 45 4
10 100 20 45 4
5 72 10 45 4
6 75 12 45 4
8 100 16 45 4
10 100 20 45 4
Q148DX 15.55 72 10 15 4
18.49 75 12 15 4
24.66 100 16 15 4
30.82 100 20 15 4
15.55 72 10 15 4
18.49 75 12 15 4
24.66 100 16 15 4
30.82 100 20 15 4
8.13 72 10 30 4
9.85 75 12 30 4
12.93 100 16 30 4
16.16 100 20 30 4
8.13 72 10 30 4
9.85 75 12 30 4
12.93 100 16 30 4
16.16 100 20 30 4
5 72 10 45 4
6 75 12 45 4
8 100 16 45 4
10 100 20 45 4
5 72 10 45 4
6 75 12 45 4
8 100 16 45 4
10 100 20 45 4
