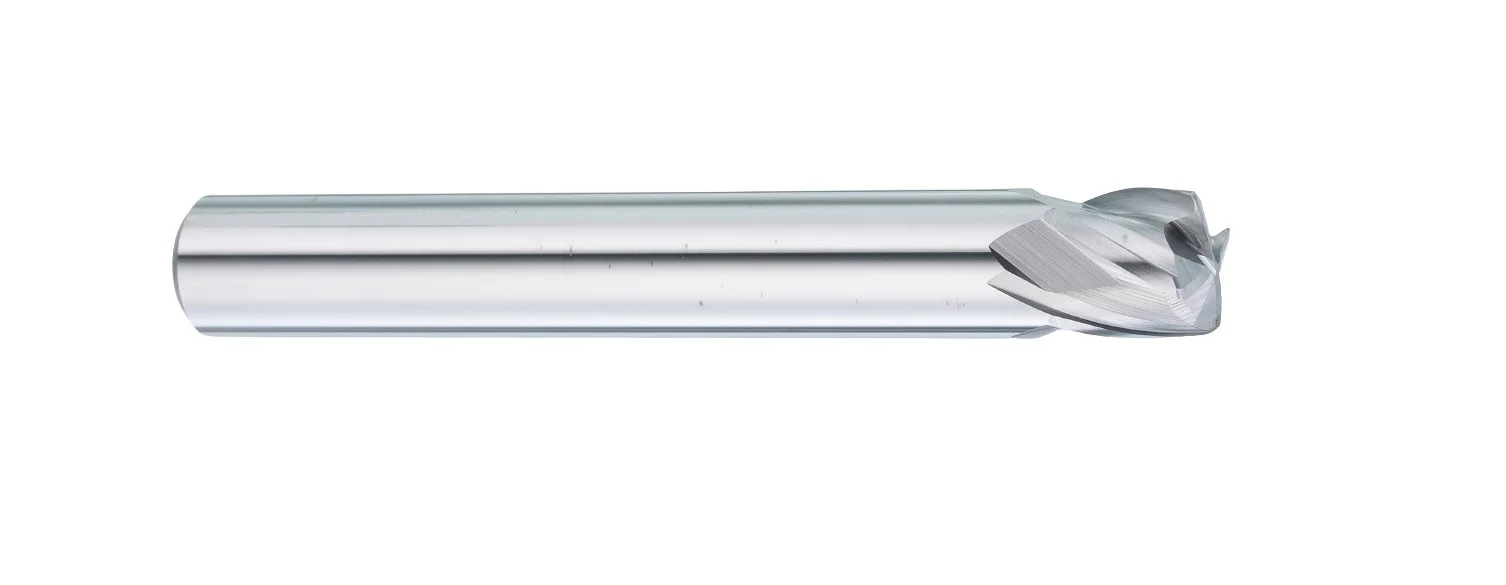

Q149 / Q149DX 5-Axis End Mills (Lens Form)
METRIC
ASIA
- The 4-flute convex mirror shape with a specially defined contour significantly reduces machining paths and improves surface finish.
- The 4-flute geometry is specifically designed for the machining of floor finely curved surfaces in aluminum alloy metal materials.
- DLC coating with extremely wear-resistant DLC diamondlike coating improves surface lubrication and wear resistance for aluminum alloy...etc.
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| N |
|---|
| GR10 |
| Aluminium |
Product Specification
| Code No. | Lc | L | d | z |
|---|---|---|---|---|
| mm | mm | h6 | ||
| Q149 | 10 | 72 | 10 | 4 |
| 12 | 75 | 12 | 4 | |
| 16 | 100 | 16 | 4 | |
| 20 | 100 | 20 | 4 | |
| Q149DX | 10 | 72 | 10 | 4 |
| 12 | 75 | 12 | 4 | |
| 16 | 100 | 16 | 4 | |
| 20 | 100 | 20 | 4 |
