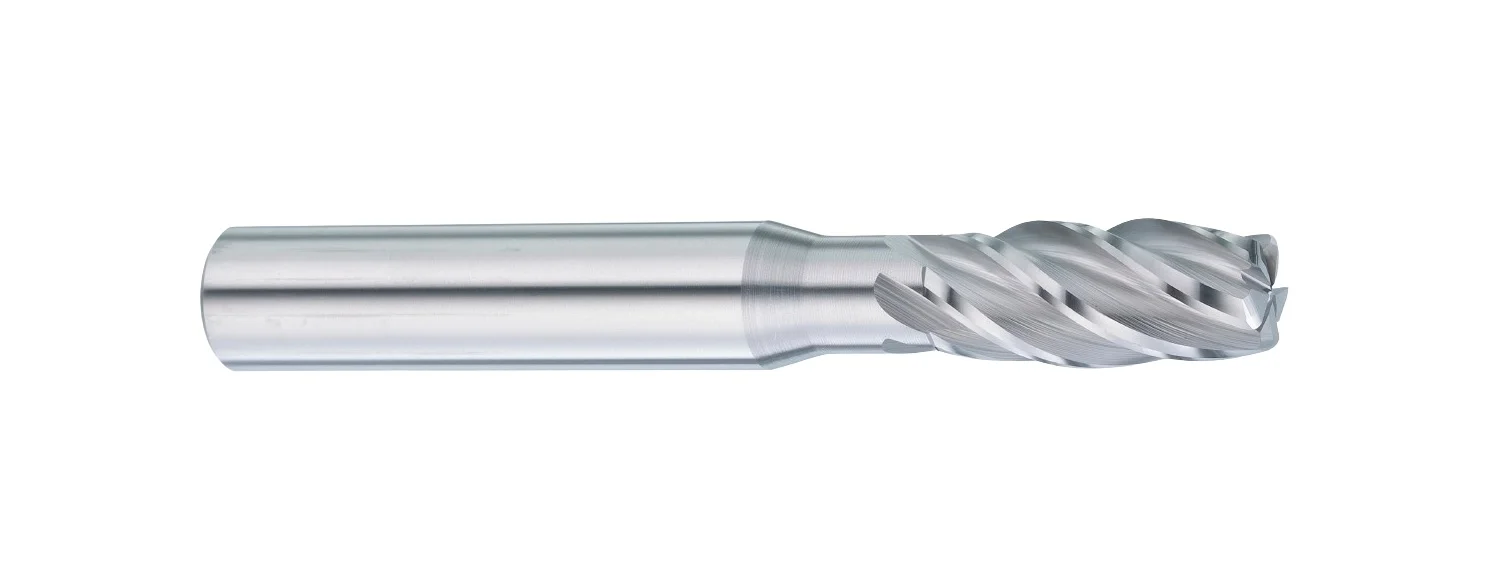

Q145 / Q145DX 5-Axis End Mills (Barrel Form)
METRIC
ASIA
- Specialized contours that significantly reduce cycle times and greatly improve surface finish.
- Barrel form with a tangential radius for machining in tight spaces.
- 5-flute unequal cutting geometry designed for semi-finishing and finishing operations such as aluminum alloy.
- DLC coating with extremely wearresistant DLC diamond-like coating improves surface lubricity and wear resistance for aluminum alloy...and other materials.
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| N |
|---|
| GR10 |
| Aluminium |
Product Specification
| Code No. | Dc | Lc | L | d | L1 | D1 | z |
|---|---|---|---|---|---|---|---|
| 0-0.02 | mm | mm | h6 | mm | mm | ||
| Q145 | 10 | 10 | 72 | 10 | 30 | 8 | 5 |
| 12 | 16 | 100 | 16 | 36 | 10 | 5 | |
| 16 | 20 | 100 | 20 | 48 | 12 | 5 | |
| Q145DX | 10 | 10 | 72 | 10 | 30 | 8 | 5 |
| 12 | 16 | 100 | 16 | 36 | 10 | 5 | |
| 16 | 20 | 100 | 20 | 48 | 12 | 5 |
