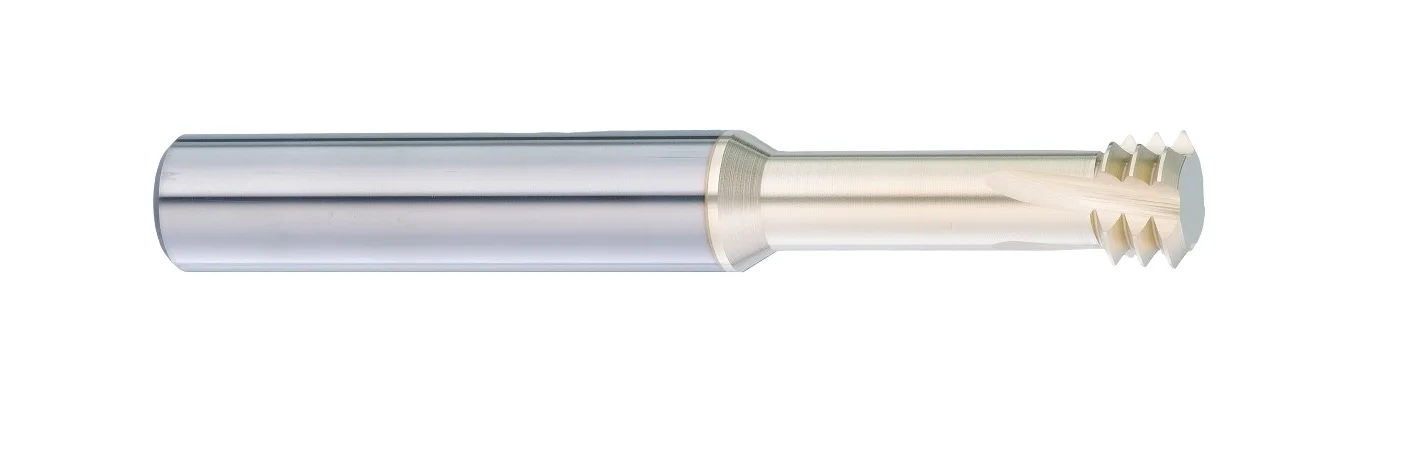

T730-2.0SX / T730-3.0SX Micro Thread Mills (ISO) (Difficult To Cut Materials)

METRIC ASIA
  • Suitable for difficult to cut materials such as, titanium alloy, nickel alloy, stainless steel and below HRC56 hardened steel…etc.
  • MG carbide
  • 5
  • 2025-02-18_154600
  • 2025-02-18_154524
  • 2025-02-18_162657
  • 2025-02-18_162717
Inquiry Download
PREV NEXT

P H M K N S

Work Material

P H M S
GR1 GR4 GR5 GR6 GR8 GR15 GR16 GR17
Carbon Steel 30~38HRC Hardened Steel 38~48HRC Hardened Steel 48~56HRC Hardened Steel Stainless Steel Titanium Nickel High Temp Alloys

Product Specification

Product Filter
Dc
L
d
L1
Thread Thread Pitch Code No. Dc L d L1 t
M1x0.25 2xD 0.25 T730020SX 0072 023 ISO 025 0.72 50 4 2.3 3
M1.2x0.25 M2~M2.2x0.25 2xD 0.25 T730020SX 0091 028 ISO 025 0.91 50 4 2.8 3
M1.4x0.3 2xD 0.3 T730020SX 0105 032 ISO 030 1.05 50 4 3.2 3
M1.6x0.35 M2.5~M3.5x0.35 2xD 0.35 T730020SX 0120 036 ISO 035 1.2 50 4 3.6 3
M2x0.4 2xD 0.4 T730020SX 0155 045 ISO 040 1.55 50 4 4.5 3
M2.2x0.45 2xD 0.45 T730020SX 0165 049 ISO 045 1.65 50 4 4.9 3
M2.5x0.45 2xD 0.45 T730020SX 0195 055 ISO 045 1.95 50 4 5.5 3
M3x0.5 M3.5~M16x0.5 2xD 0.5 T730020SX 0240 065 ISO 050 2.4 50 4 6.5 3
M3.5x0.6 2xD 0.6 T730020SX 0275 076 ISO 060 2.75 50 4 7.6 3
M4x0.7 2xD 0.7 T730020SX 0315 087 ISO 070 3.15 50 6 8.7 3
M5x0.8 2xD 0.8 T730020SX 0400 108 ISO 080 4 50 6 10.8 3
M6x1 M8~M40x1 2xD 1 T730020SX 0480 130 ISO 100 4.8 50 6 13 3
M8x1.25 M10~M48x1.25 2xD 1.25 T730020SX 0650 173 ISO 125 6.5 60 8 17.3 3
M10x1.5 M12~M48x1.5 2xD 1.5 T730020SX 0820 215 ISO 150 8.2 75 10 21.5 3
M12x1.75 2xD 1.75 T730020SX 0990 260 ISO 175 9.9 75 10 26 4
M14x2 M17~M80x2 2xD 2 T730020SX 1160 300 ISO 200 11.6 75 12 30 4
M16x2 M17~M80x2 2xD 2 T730020SX 1190 350 ISO 200 11.9 75 12 35 4
M20x2.5 2xD 2.5 T730020SX 1590 430 ISO 250 15.9 100 16 43 4
M2x0.4 3xD 0.4 T730030SX 0155 065 ISO 040 1.55 50 4 6.5 3
M2.5x0.45 3xD 0.45 T730030SX 0195 080 ISO 045 1.95 50 4 8 3
M3x0.5 M3.5~M16x0.5 3xD 0.5 T730030SX 0240 095 ISO 050 2.4 50 4 9.5 3
M3.5x0.6 3xD 0.6 T730030SX 0275 105 ISO 060 2.75 50 4 10.5 3
M4x0.7 3xD 0.7 T730030SX 0315 127 ISO 070 3.15 50 6 12.7 3
M5x0.8 3xD 0.8 T730030SX 0400 158 ISO 080 4 50 6 15.8 3
M6x1 M8~M40x1 3xD 1 T730030SX 0480 190 ISO 100 4.8 50 6 19 3
M8x1.25 M10~M48x1.25 3xD 1.25 T730030SX 0650 253 ISO 125 6.5 60 8 25.3 3
M10x1.5 M12~M48x1.5 3xD 1.5 T730030SX 0820 315 ISO 150 8.2 75 10 31.5 4
M12x1.75 3xD 1.75 T730030SX 0990 380 ISO 175 9.9 75 10 38 4
