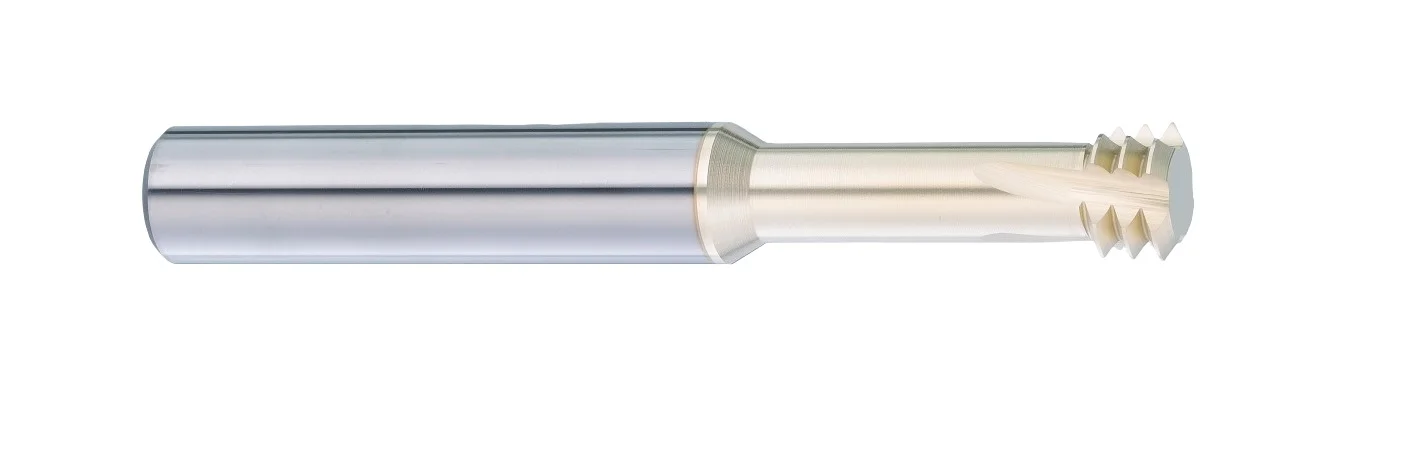

T731SX Micro Thread Mills (MJ)

METRIC ASIA
  • Suitable for difficult to cut materials such as, titanium alloy, nickel alloy, stainless steel and below HRC56 hardened steel…etc.
  • MG carbide
  • 5
  • 2025-02-18_154600
  • 2025-02-18_154524
  • 2025-02-18_162657
  • 2025-02-18_162717
Inquiry Download
PREV NEXT

P H M K N S

Work Material

P H M S
GR1 GR4 GR5 GR6 GR8 GR15 GR16 GR17
Carbon Steel 30~38HRC Hardened Steel 38~48HRC Hardened Steel 48~56HRC Hardened Steel Stainless Steel Titanium Nickel High Temp Alloys

Product Specification

Product Filter
Dc
L
d
L1
Thread Thread Pitch Code No. Dc L d L1 t
MJ3x0.5 3xD 0.5 T731SX 0240 092 MJ 050 2.4 50 6 9.2 3
MJ3.5x0.6 3xD 0.6 T731SX 0285 110 MJ 060 2.85 50 6 11 3
MJ4x0.7 3xD 0.7 T731SX 0315 123 MJ 070 3.15 50 6 12.3 3
MJ5x0.8 3xD 0.8 T731SX 0405 154 MJ 080 4.05 50 6 15.4 3
MJ6x1.0 3xD 1 T731SX 0480 185 MJ 100 4.8 50 6 18.5 3
MJ8x1.25 3xD 1.25 T731SX 0650 246 MJ 125 6.5 60 8 24.6 3
MJ10x1.5 3xD 1.5 T731SX 0820 308 MJ 150 8.2 75 10 30.8 3
MJ12x1.75 3xD 1.75 T731SX 0990 370 MJ 175 9.9 75 10 37 3
MJ14x2 3xD 2 T731SX 1190 425 MJ 200 11.9 80 8 42.5 3
