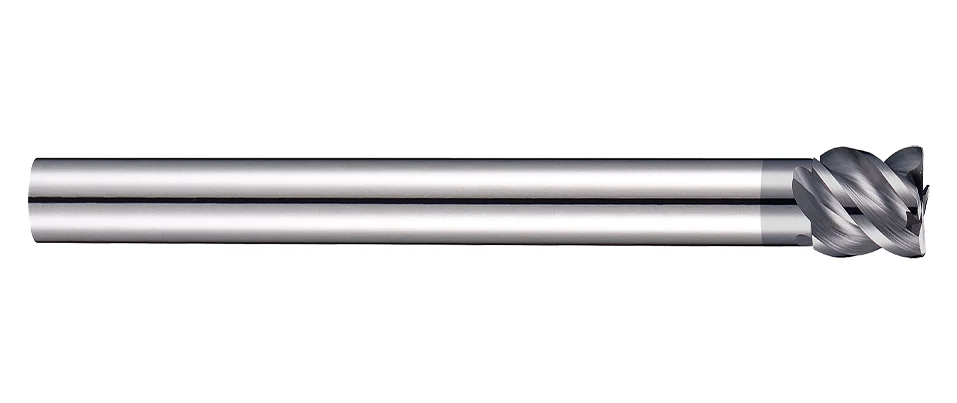

E149HX Multipurpose End Mills．Slim Shank．Long Type

METRIC ASIA
  • Multipurpose End Mills- 4 Flutes · Extra long · Slim Shank
  • Effectively decrease the vibration by various helix geometry and unequal flutes designs.
  • Big chip breaker is designed to reach high removal rate for various work materials.
  • Obviously improve tool life with Nano multilayer coating AlTiCrN.
  • Designed with step increases the effective length.
  • Suitable for different kinds of materials cutting.
  • MG carbide
  • ALTiCrNHX
  • 3841
  • Blade4 New
  • Nr5
  • 90
  • 1
  • 2
  • 機械加工方式 4-5
  • 機械加工方式 1-1
Inquiry Download
PREV NEXT

Steel < 48HRC

P H M K N S

Work Material

P H M K S
GR1 GR2 GR3 GR4 GR5 GR8 GR9 GR15 GR16 GR17
Carbon Steel <24HRC Low-alloyed Steel <30HRC Hi-alloyed Steel 30~38HRC Hardened Steel 38~48HRC Hardened Steel Stainless Steel Cast Iron Titanium Nickel High Temp Alloys

Product Specification

Product Filter
Dc
Cutting Diameter
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 22
Lc
Length of Cutting
  • 9
  • 10.5
  • 12
  • 13.5
  • 15
  • 16.5
  • 18
  • 19.5
  • 21
  • 22.5
  • 24
  • 27
  • 28.5
  • 30
  • 33
L
Overall Length
  • 120
  • 135
  • 150
  • 160
  • 180
  • 200
d
Shank Diameter
  • 5
  • 6
  • 8
  • 10
  • 12
  • 14
  • 16
  • 18
  • 20
z
Number of Flute
  • 4
Dc Lc L d z
0-0.02 mm mm h6
6 9 120 5 4
7 10.5 135 6 4
8 12 135 6 4
9 13.5 135 8 4
10 15 150 8 4
11 16.5 160 10 4
12 18 160 10 4
13 19.5 160 12 4
14 21 160 12 4
15 22.5 180 14 4
16 24 180 14 4
17 22.5 180 16 4
18 27 180 16 4
19 28.5 200 18 4
20 30 200 18 4
22 33 200 20 4
