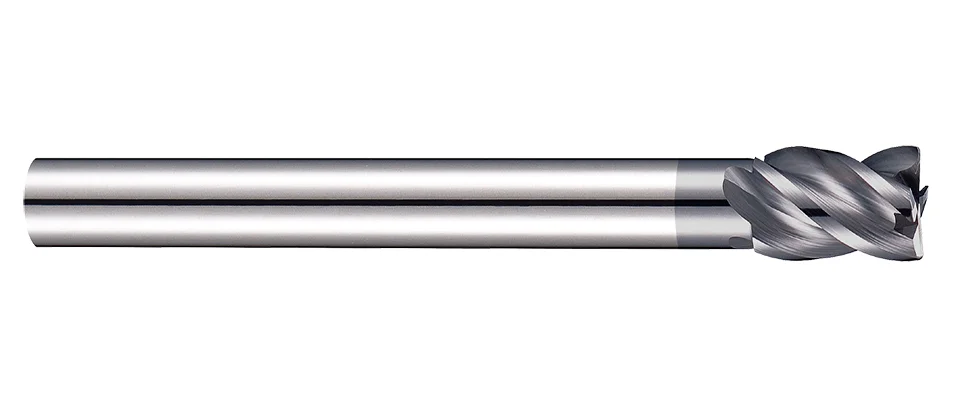

E148HX Multipurpose End Mills．Slim Shank．Short Type
METRIC
ASIA
- Multipurpose End Mills- 4 Flutes · Long and Slim Shank
- Effectively decrease the vibration by various helix geometry and unequal flutes designs.
- Big chip breaker is designed to reach high removal rate for various work materials.
- Obviously improve tool life with Nano multilayer coating AlTiCrN.
- Designed with step increases the effective length.
- Suitable for different kinds of materials cutting.
Steel < 48HRC
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| P | H | M | K | S | |||||
|---|---|---|---|---|---|---|---|---|---|
| GR1 | GR2 | GR3 | GR4 | GR5 | GR8 | GR9 | GR15 | GR16 | GR17 |
| Carbon Steel | <24HRC Low-alloyed Steel | <30HRC Hi-alloyed Steel | 30~38HRC Hardened Steel | 38~48HRC Hardened Steel | Stainless Steel | Cast Iron | Titanium | Nickel | High Temp Alloys |
Product Specification
| Dc | Lc | L | d | z |
|---|---|---|---|---|
| 0-0.02 | mm | mm | h6 | |
| 7 | 10.5 | 70 | 6 | 4 |
| 8 | 12 | 75 | 6 | 4 |
| 9 | 13.5 | 80 | 8 | 4 |
| 10 | 15 | 80 | 8 | 4 |
| 11 | 16.5 | 100 | 10 | 4 |
| 12 | 18 | 100 | 10 | 4 |
| 13 | 19.5 | 100 | 12 | 4 |
| 14 | 21 | 110 | 12 | 4 |
| 15 | 22.5 | 110 | 14 | 4 |
| 16 | 24 | 110 | 14 | 4 |
| 17 | 22.5 | 110 | 16 | 4 |
| 18 | 27 | 125 | 16 | 4 |
| 19 | 28.5 | 125 | 18 | 4 |
| 20 | 30 | 125 | 18 | 4 |
| 22 | 33 | 125 | 20 | 4 |
