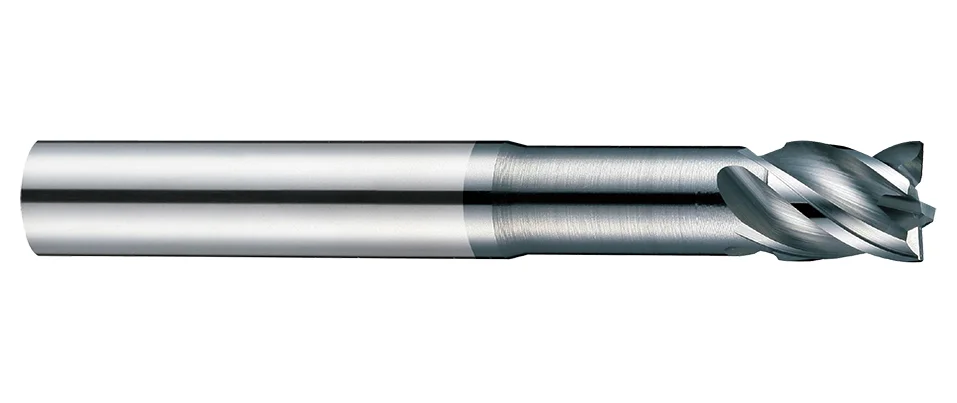

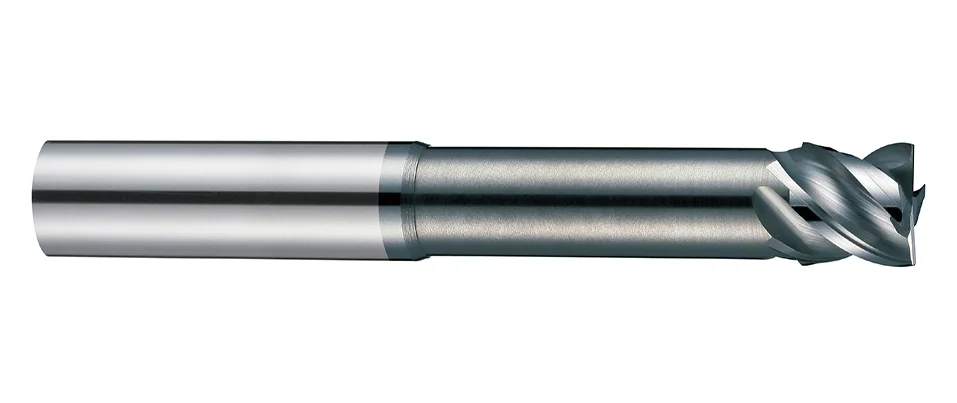

F612HX Multipurpose End Mills

METRIC ASIA
  • Multipurpose End Mills- 4 Flutes · Short Type · Long Neck
  • With UMG carbide material, wear resistance is highly enhanced.
  • Effectively decrease the vibration by various helix geometry and unequal flutes designs.
  • Big chip breaker is designed to reach high removal rate for various work materials.
  • Obviously improve tool life with Nano multilayer coating AlTiCrN.
  • Designed with step increases the effective length.
  • Suitable for different kinds of materials in finishing.
  • UMG carbide
  • ALTiCrNHX
  • 3841
  • Blade4 New
  • Nr5
  • 45度(0.05-0.2)
  • 機械加工方式 2-3
  • 機械加工方式 4-5
  • 機械加工方式 1-1
  • 機械加工方式 1-2

スチール < 52HRC

P H M K N S

Work Material

P H M K S
GR1 GR2 GR3 GR4 GR5 GR8 GR9 GR15 GR16 GR17
Carbon Steel <24HRC Low-alloyed Steel <30HRC Hi-alloyed Steel 30~38HRC Hardened Steel 38~48HRC Hardened Steel Stainless Steel Cast Iron Titanium Nickel High Temp Alloys

Product Specification

Product Filter
Dc
Lc
L
d
L1
z
Dc Lc L d L1 D1 z
0-0.02 mm mm h5 mm mm
3 4 57 6 9 2.8 4
3.5 4.5 57 6 12 3.3 4
4 5 57 6 12 3.7 4
4.5 5.5 57 6 15 4.2 4
5 6 57 6 15 4.6 4
5.5 6.5 57 6 20 5.1 4
6 7 57 6 20 5.5 4
6.5 7.5 63 8 23 6 4
7 8 63 8 23 6.4 4
7.5 8.5 63 8 26 6.9 4
8 9 63 8 26 7.4 4
8.5 9.5 72 10 29 7.9 4
9 10 72 10 29 8.3 4
9.5 10.5 72 10 31 8.8 4
10 11 72 10 31 9.2 4
10.5 11.5 83 12 34 9.7 4
11 12 83 12 34 10.2 4
11.5 12.5 83 12 37 10.6 4
12 13 83 12 37 11 4
13 14 92 16 38 11.8 4
14 15 92 16 40 12.7 4
15 16 92 16 42 13.6 4
16 17 92 16 43 14.5 4
17 18 104 20 45 15.4 4
18 19 104 20 48 16.3 4
19 20 104 20 51 17.3 4
20 21 104 20 53 18.2 4
